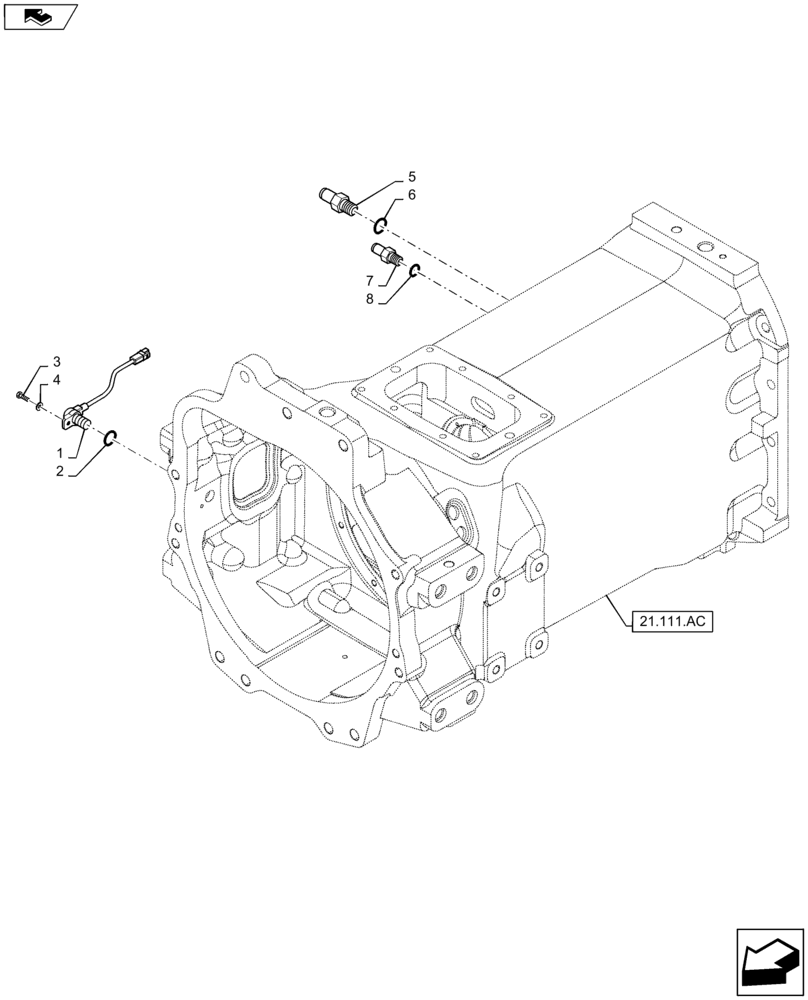

Запчасти Case IH MAXXUM 115 (55.023.AB[01]) - VAR - 330247, 743766, 330291, 743764 - GEARBOX SENSOR (55) - ELECTRICAL SYSTEMS

1

84169162

SENSOR

Gearbox, Std Equipment or VAR 330247, 743766, 330291, 743764

1шт.

2

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

Std Equipment or VAR 330247, 743766, 330291, 743764

1шт.

3

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

Std Equipment or VAR 330247, 743766, 330291, 743764

1шт.

4

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

Std Equipment or VAR 330247, 743766, 330291, 743764

1шт.

5

82018879

SWITCH ASSY

Lo Synchro Range Position

1шт.

6

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

82018880

SWITCH ASSY

Hi Synchro Range Position

1шт.

8

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
