Запчасти Case IH MAXXUM 115 (50.104.AQ) - VAR - 331516, 331571 + STD - HEATING/AIR CONDITIONING - FILTERS (50) - CAB CLIMATE CONTROL

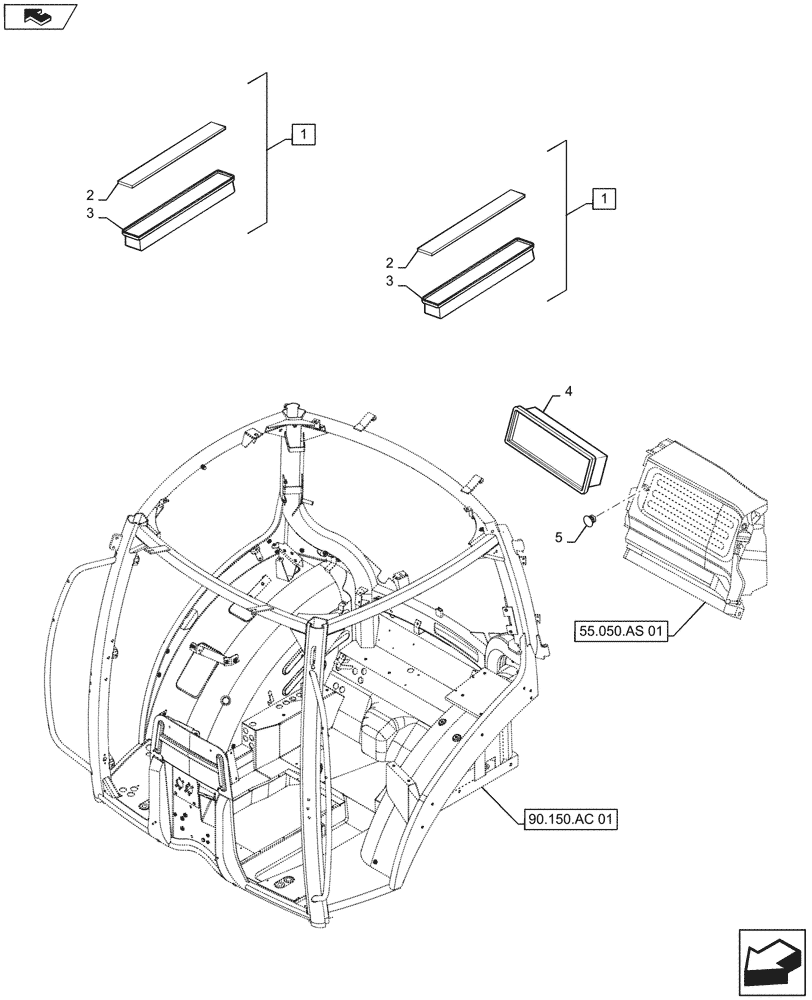

Схема запчастей Case IH MAXXUM 115 - (50.104.AQ) - VAR - 331516, 331571 + STD - HEATING/AIR CONDITIONING - FILTERS (50) - CAB CLIMATE CONTROL
home
2
4
3
2
5
3
1
1
90.150.ac 01
55.050.as 01

Артикул

Название

Примечание

Количество

1

87726695

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Incl 2, 3, Var. 331516, 331571

2шт.

w/ Low Profile Roof

1шт.

1

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Incl 2, 3, STD

2шт.

w/ High Profile Roof

1шт.

2

87726696

CAB FILTER,359mm L x 109mm W x 10mm Thk

Pre Filter Foam, Var. 331516, 331571

2шт.

2

87726694

FOAM

Pre Filter, STD

2шт.

3

NSS

NOT SOLD SEPARAT

Filter, Incl in 1, 2

1шт.

4

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

1шт.

5

82027031

PLUG,M10

1шт.

Выбрано товаров: 9
