Запчасти Case IH MAXXUM 115 (50.104.AO[03]) - VAR - 330643 - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL

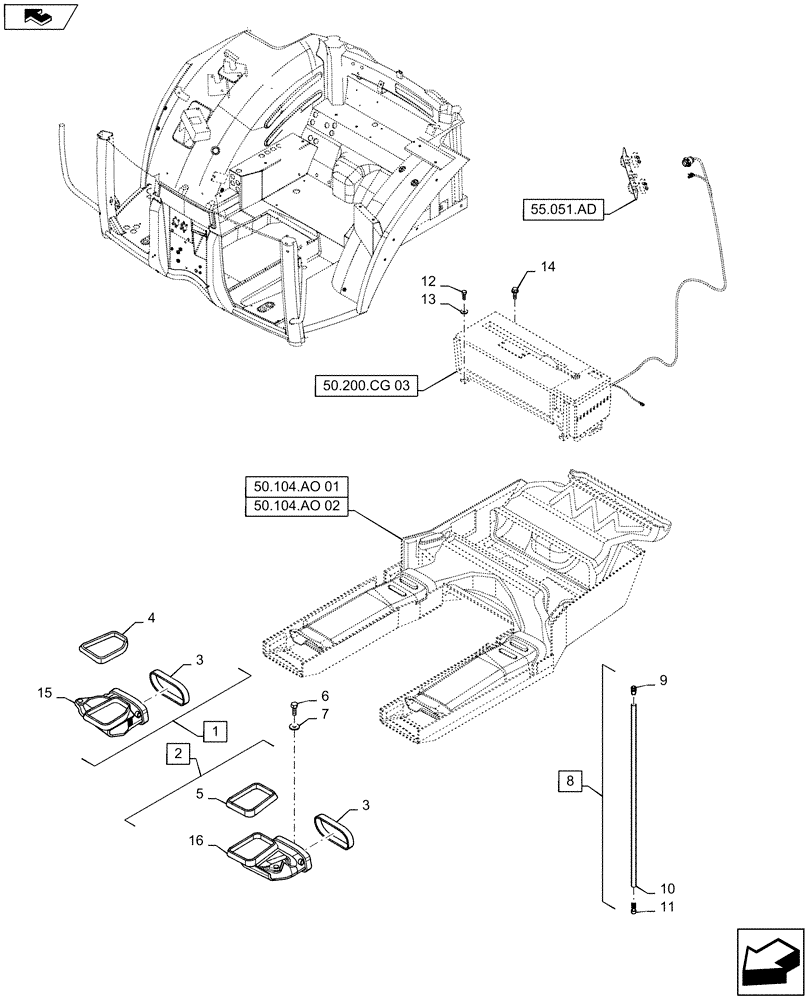

Схема запчастей Case IH MAXXUM 115 - (50.104.AO[03]) - VAR - 330643 - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL
16
11
55.051.ad
3
9
5
14
2
8
50.104.ao 02
home
12
13
10
6
1
15
4
3
50.200.cg 03
50.104.ao 01
7

Артикул

Название

Примечание

Количество

1

87518106

DUCT

RH, Incl 3, 4, 15

1шт.

2

87390278

DUCT

LH, Incl 3, 5, 16

1шт.

3

87523573

SEAL

2шт.

4

87523583

SEAL

1шт.

5

87523726

SEAL

1шт.

6

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

2шт.

7

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

8

84232466

TUBE

A/C, Incl 9, 10, 11

2шт.

9

84231998

DRAIN

1шт.

10

84232468

HOSE,25.40 mm ID x 800.00 mm

A/C

1шт.

11

84232000

CHECK VALVE

1шт.

12

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

13

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

14

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

15

NSS

NOT SOLD SEPARAT

Duct, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Duct, Incl in 2

1шт.

Выбрано товаров: 16
