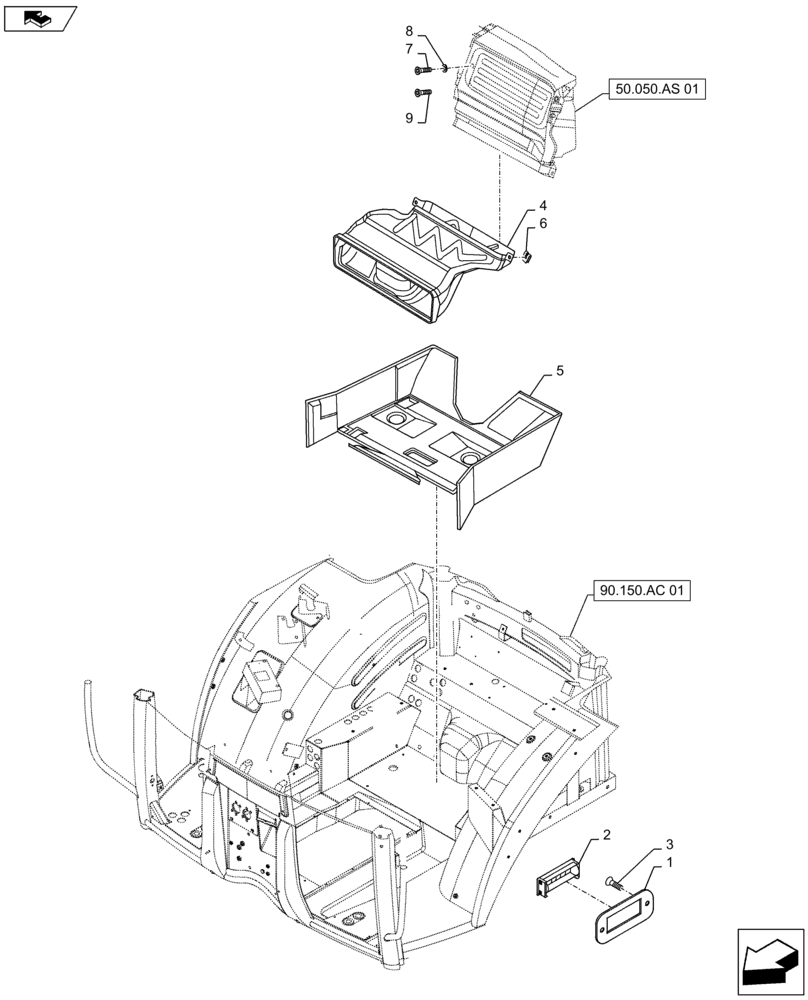

Запчасти Case IH MAXXUM 115 (50.104.AH[01]) - HEATING/AIR CONDITIONING -DUCT AND INSULATION (50) - CAB CLIMATE CONTROL

1

82022361

SUPPORT

1шт.

2

87568776

DIFFUSER

2шт.

3

84187828

SCREW,Torx, Pan HD, M4.2 x 1.4 x 25mm

2шт.

4

87614773

AIR DUCT

1шт.

5

87661585

INSULATOR

1шт.

6

87567755

SPRING NUT,M5

2шт.

7

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

, Years: -19-JAN-12, Serial Range: -C7254

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

, Start Year: 20-JAN-12, Start Serial: D7254

2шт.
