Запчасти Case IH MAXXUM 115 (41.200.AF[01]) - HYDROSTATIC STEERING WITH CL.3 FRONT AXLE - STEERING MOTOR (41) - STEERING

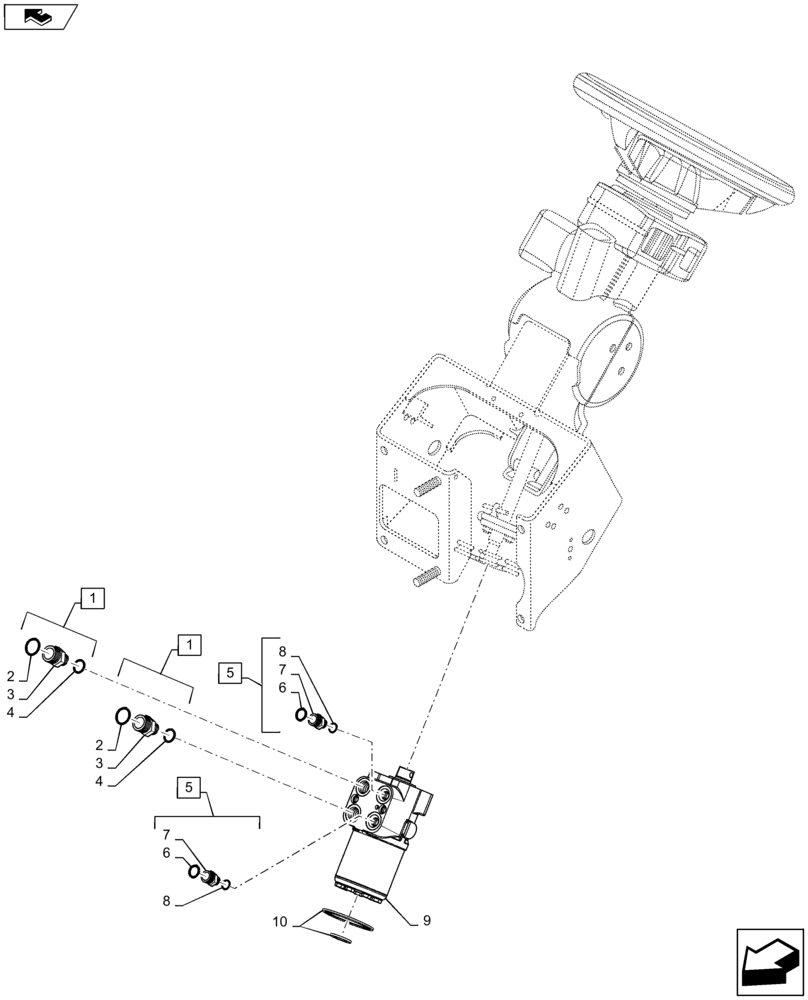

Схема запчастей Case IH MAXXUM 115 - (41.200.AF[01]) - HYDROSTATIC STEERING WITH CL.3 FRONT AXLE - STEERING MOTOR (41) - STEERING
8
6
5
6
2
5
7
3
home
10
7
1
1
4
8
3
4
2
9

Артикул

Название

Примечание

Количество

1

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Incl 2 - 4

2шт.

2

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

2шт.

4

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

5

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

Incl 6 - 8

2шт.

6

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

8

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

9

84198317

HYDRAULIC STEERING

Incl 10

1шт.

10

87363996

KIT

Seal and Washer

1шт.

Выбрано товаров: 10
