Запчасти Case IH MAXXUM 115 (39.140.AF[06]) - VAR - 330220 - FRONT WEIGHT CARRIER AND 8 WEIGHTS WITH PULL HOOK (39) - FRAMES AND BALLASTING

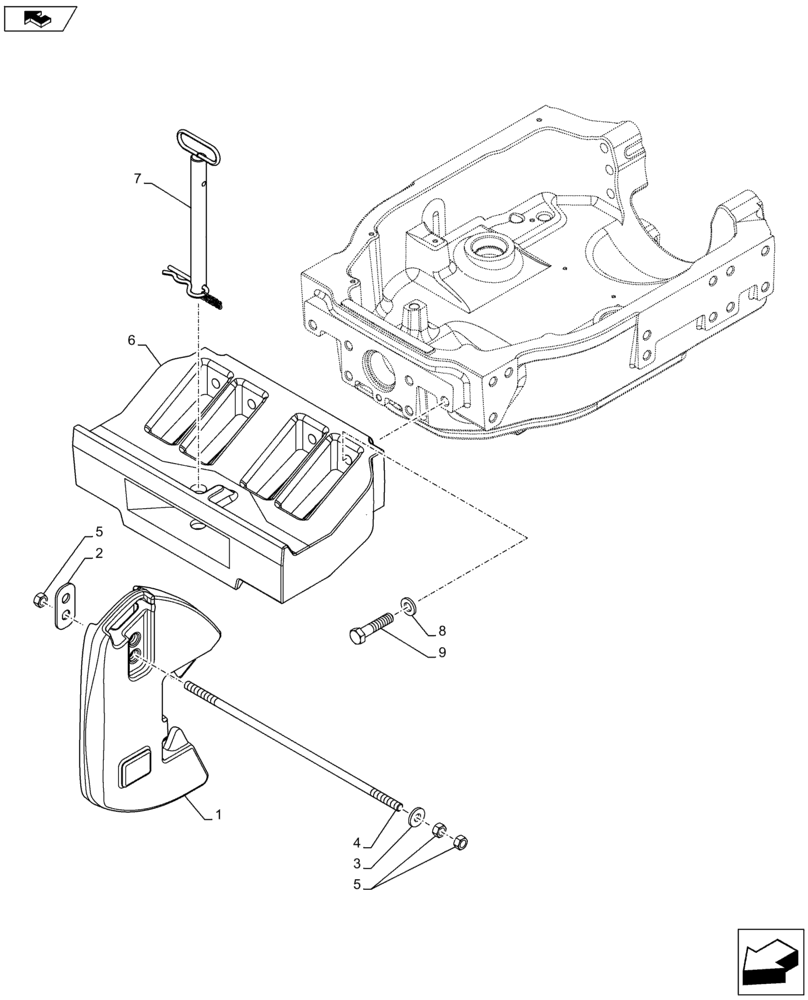

Схема запчастей Case IH MAXXUM 115 - (39.140.AF[06]) - VAR - 330220 - FRONT WEIGHT CARRIER AND 8 WEIGHTS WITH PULL HOOK (39) - FRAMES AND BALLASTING
6
home
8
3
4
9
2
7
5
1
5

Артикул

Название

Примечание

Количество

1

86988727

WEIGHT,45Kg

8шт.

2

44995007

CLAMP,Grey

PLATE

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

1шт.

4

82028018

ROD,M16 x 2 x 500.00mm, ZND

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

3шт.

6

82031499

WEIGHT CARRIER

1шт.

7

44995060

CLEVIS PIN,31mm OD x 315mm L

w/ Chain

1шт.

8

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

9

16050821

BOLT,Hex, M20 x 90mm, Cl 8.8

6шт.

Выбрано товаров: 9
