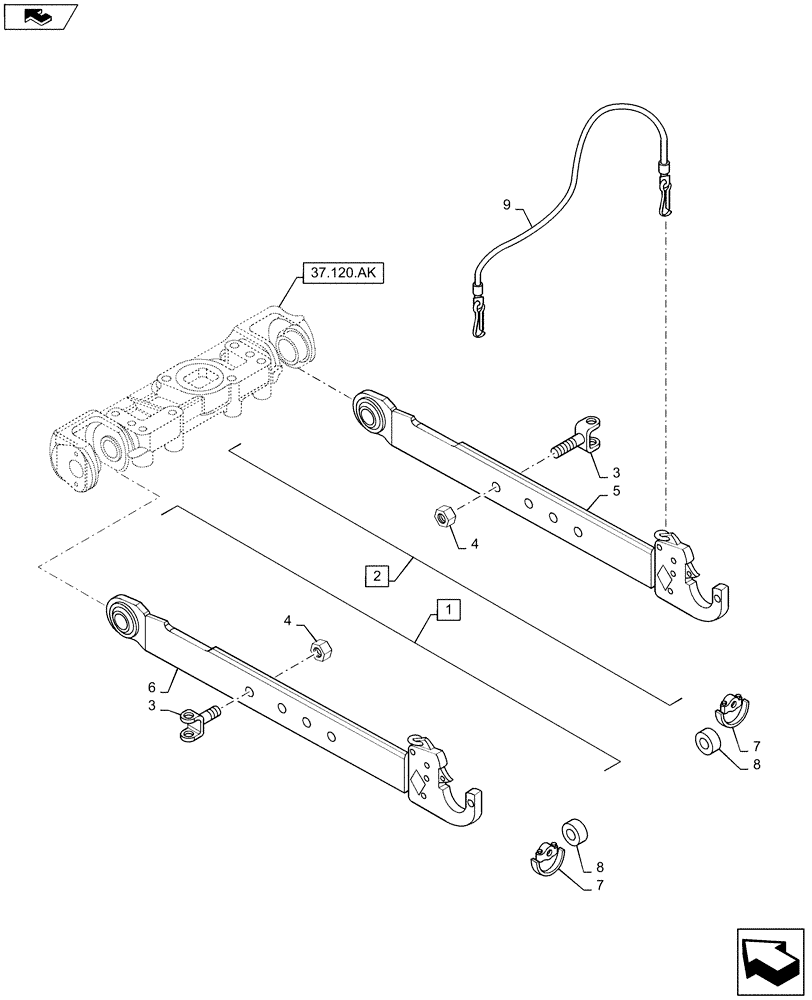

Запчасти Case IH MAXXUM 115 (37.120.AO[01]) - VAR - 330921, 331921, 743696 - TOOLING CONNECTION UNIT - LOWER ARMS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47125179

LIFT LINK

LH, Cat 2/3, Incl 3, 4, 6

1шт.

2

47125178

LIFT LINK

RH, Cat 2/3, Incl 3 - 5

1шт.

3

5190955

YOKE,M24 x 2

2шт.

4

12164511

NUT,M24 x 2, Cl 8

2шт.

5

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

7

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

Cat 2

2шт.

7

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

Cat 3

2шт.

8

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

Cat 2

2шт.

8

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

Cat 3

2шт.

9

5116063

ROPE,4500mm L

1шт.
