Запчасти Case IH MAXXUM 115 (33.220.AC[03]) - VAR - 330723, 331723, 743691 - TRAILER BRAKE VALVE (ITALY) - VALVE PIPES (33) - BRAKES & CONTROLS

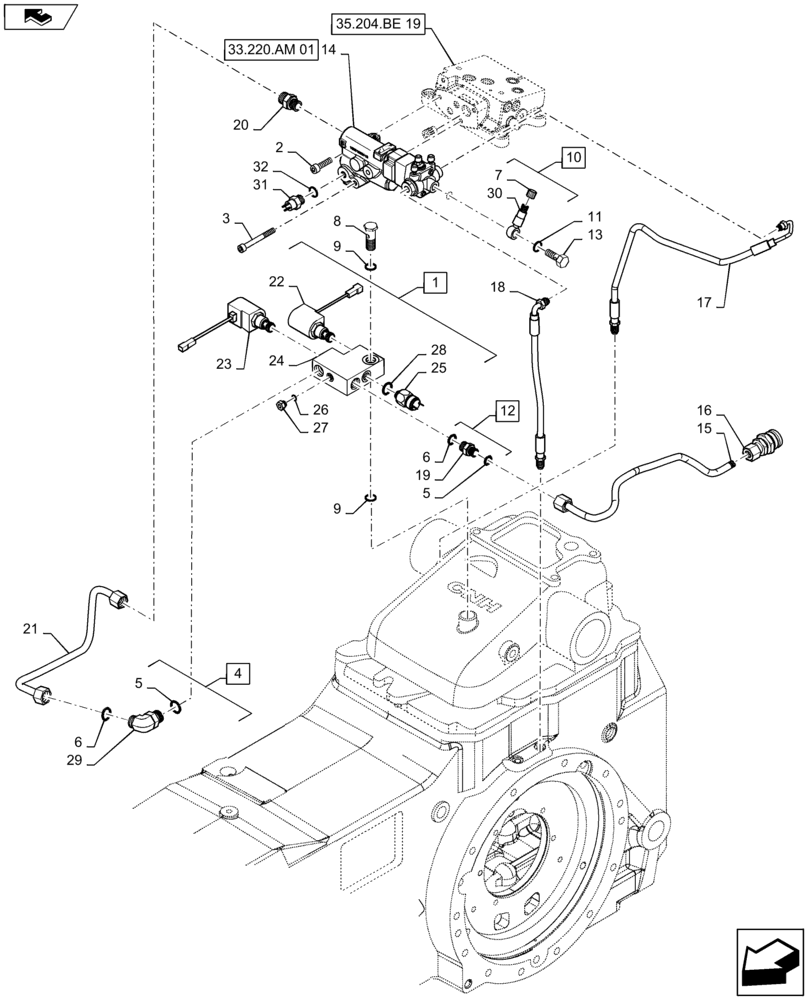

Схема запчастей Case IH MAXXUM 115 - (33.220.AC[03]) - VAR - 330723, 331723, 743691 - TRAILER BRAKE VALVE (ITALY) - VALVE PIPES (33) - BRAKES & CONTROLS
32
10
7
11
1
home
22
21
13
3
29
17
18
15
9
33.220.am 01
9
4
31
16
27
8
25
19
23
24
6
2
26
28
14
6
5
20
12
5
30
35.204.be 19

Артикул

Название

Примечание

Количество

1

5196175

BRAKE VALVE

Incl 22 - 28

1шт.

2

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

1шт.

3

14359421

HEX SOC SCREW,M8 x 75mm, Cl 8.8

2шт.

4

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Incl 5, 6, 29

1шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

7

44995074

PLUG,M8 x 1.0

1шт.

8

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

10

82030175

BANJO FITTING,M8 x 1 x 53mm

Incl 7, 30

1шт.

11

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

12

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Incl 5, 6, 19

1шт.

13

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

14

5192069

BRAKE VALVE

1шт.

15

84467209

HYD TUBE

1шт.

16

5144514

HYDRAULIC VALVE

1шт.

17

5196663

FLEXIBLE HOSE

RH

1шт.

18

5196661

FLEXIBLE HOSE,4.75mm ID x 350mm L

LH

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

20

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

21

47124762

HYD TUBE

1шт.

22

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Oil Pressure

1шт.

23

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Oil Pressure

1шт.

24

5196170

BLOCK

1шт.

25

87494633

PRESSURE SWITCH

1шт.

26

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

27

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

28

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

29

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

30

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

1шт.

31

2856546

PLUG

1шт.

32

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 32
