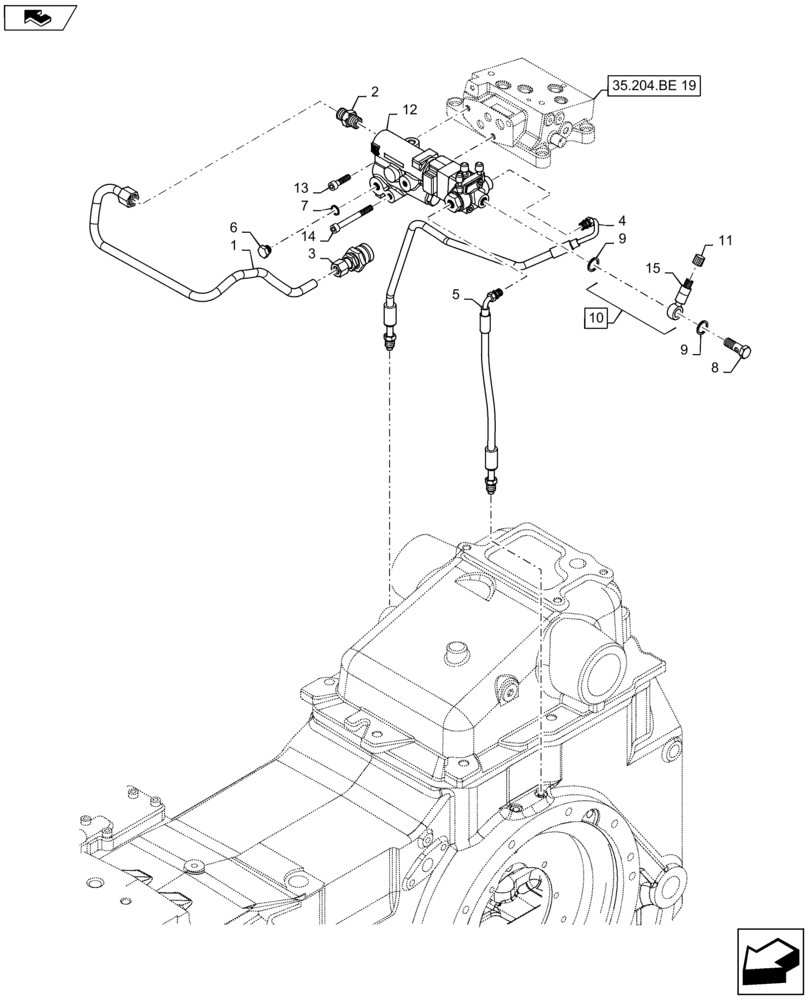

Запчасти Case IH MAXXUM 115 (33.220.AC[02]) - VAR - 330718 - UNIVERSAL TRAILER BRAKE VALVE - VALVE PIPES (33) - BRAKES & CONTROLS

1

84467202

HYD TUBE

1шт.

2

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

3

44015354

QUICK MALE COUPLING

1шт.

4

5196663

FLEXIBLE HOSE

RH

1шт.

5

5196661

FLEXIBLE HOSE,4.75mm ID x 350mm L

LH

1шт.

6

2856546

PLUG

1шт.

7

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

8

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

9

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

10

82030175

BANJO FITTING,M8 x 1 x 53mm

Incl 11, 15

1шт.

11

44995074

PLUG,M8 x 1.0

1шт.

12

5192069

BRAKE VALVE

1шт.

13

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

1шт.

14

14359421

HEX SOC SCREW,M8 x 75mm, Cl 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

1шт.
