(31.104.AR[11]) - ELECTROHYDRAULIC CONTROL VALVE FOR 30 AND 40KM/H TRANSMISSION WITH CREEPER

Запчасти Case IH MAXXUM 115 (31.104.AR[11]) - ELECTROHYDRAULIC CONTROL VALVE FOR 30 AND 40KM/H TRANSMISSION WITH CREEPER (31) - IMPLEMENT POWER TAKE OFF

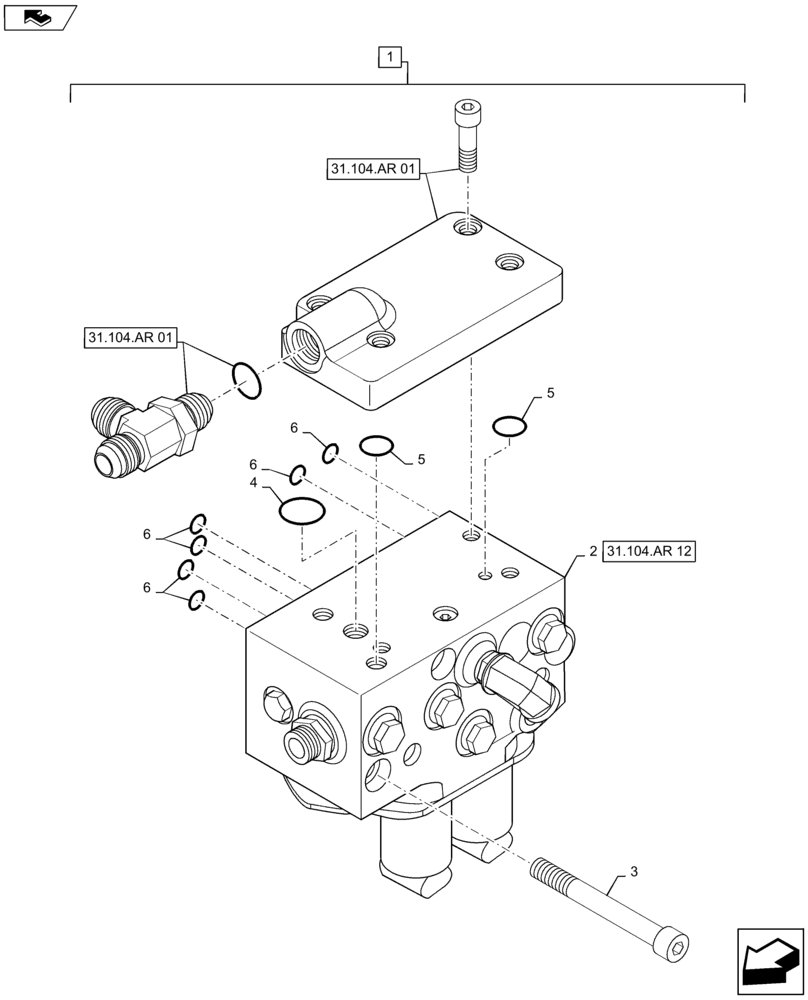

Схема запчастей Case IH MAXXUM 115 - (31.104.AR[11]) - ELECTROHYDRAULIC CONTROL VALVE FOR 30 AND 40KM/H TRANSMISSION WITH CREEPER (31) - IMPLEMENT POWER TAKE OFF
1
31.104.ar 01
3
home
6
5
31.104.ar 12
31.104.ar 01
4
6
6
2
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Incl 2 - 5 and Components shown in Figure 31.104.AR 01

1шт.

2

5195592

CONTROL VALVE

1шт.

3

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

6

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

Выбрано товаров: 6
