(27.106.AA[01]) - VAR - 330247, 743766, 330291, 743764 + STD - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - CENTRAL REDUCTION GEARS AND BEVEL GEAR PAIR

Запчасти Case IH MAXXUM 115 (27.106.AA[01]) - VAR - 330247, 743766, 330291, 743764 + STD - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - CENTRAL REDUCTION GEARS AND BEVEL GEAR PAIR (27) - REAR AXLE SYSTEM

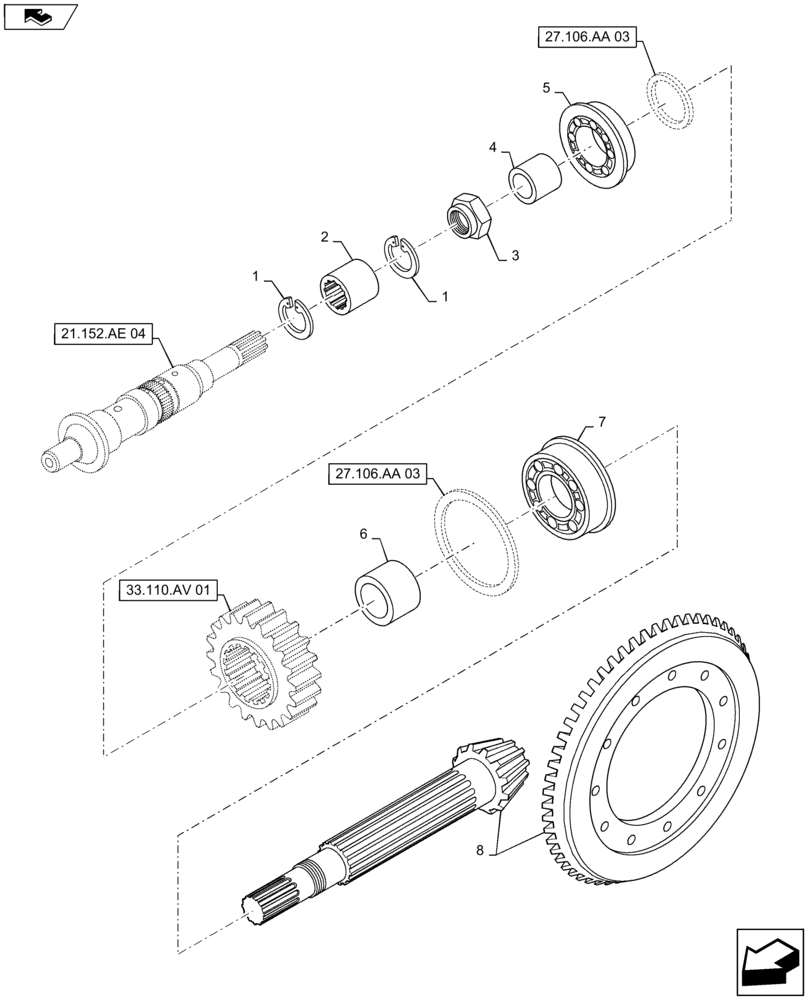

Схема запчастей Case IH MAXXUM 115 - (27.106.AA[01]) - VAR - 330247, 743766, 330291, 743764 + STD - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - CENTRAL REDUCTION GEARS AND BEVEL GEAR PAIR (27) - REAR AXLE SYSTEM
home
5
33.110.av 01
2
27.106.aa 03
1
8
7
6
3
4
27.106.aa 03
21.152.ae 04
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13421576

SNAP RING,M35, Int

2шт.

2

5192041

SLEEVE

1шт.

3

5147930

RING NUT,M45 x 1.5

1шт.

4

5192043

SPACER

1шт.

5

5138727

BEARING ASSY,45mm ID x 106mm OD x 27.25mm W

1шт.

6

5198801

SPACER

1шт.

7

5128721

TAPERED BEARING,55mm ID x 120mm OD x 45.5mm W

1шт.

8

5196680

BEVEL GEAR

Ratio 9/47

1шт.
