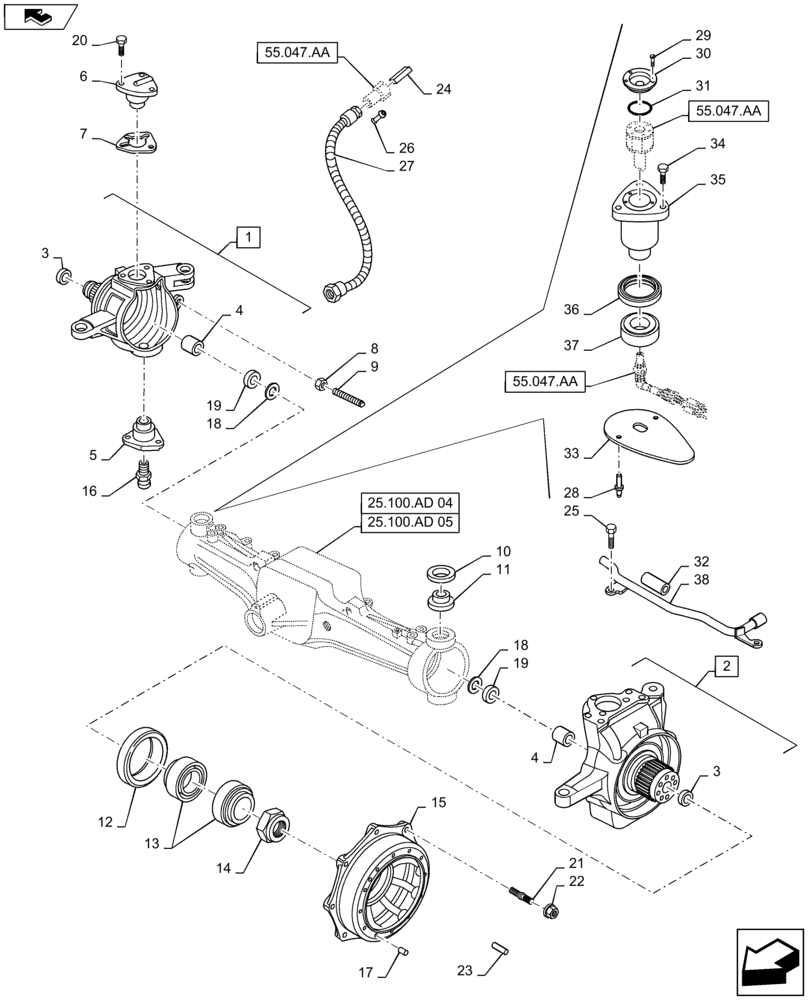

Запчасти Case IH MAXXUM 115 (25.108.AG[05]) - VAR - 330408, 330429 - CL.4 SUSPENDED FRONT AXLE - STEERING KNUCKLE - SENSOR - HUB (25) - FRONT AXLE SYSTEM

1

87330073

STEERING KNUCKLE

Incl 3, 4

1шт.

2

87330054

STEERING KNUCKLE

Incl 3, 4

1шт.

3

87592390

BUSHING,53mm ID x 68mm OD x 7.7mm L

2шт.

4

87660602

BUSHING,52mm ID x 56mm OD x 28mm L

2шт.

5

87333763

BALL STUD

Pin

2шт.

6

87361688

BALL STUD

Pin

1шт.

7

5087426

SHIM KIT

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

7

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87471124

STUD,M18

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

4шт.

14

5141692

NUT,M90 x 2

2шт.

15

84270400

HUB

2шт.

16

13407211

LUBE NIPPLE,M10 x 1

3шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

87598114

SPACER,53.00mm ID x 78.00mm OD x 4.00mm

2шт.

19

87397905

OIL SEAL,52.00mm ID x 72.00mm OD x 16.50mm

2шт.

20

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

21

87618916

STUD

32шт.

22

87678013

NUT,M16 x 1.5

32шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

82918451

SPACER

1шт.

25

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

26

82918419

PLUG

1шт.

27

84472045

FLEXIBLE SHEATH

1шт.

28

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

29

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

30

84384510

TOP

1шт.

31

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

32

87619627

HOSE PROTECTION

1шт.

32

87329095

HOSE PROTECTION

Thermoreduction

1шт.

33

87315098

SHIELD

1шт.

34

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

35

87382577

BALL STUD

1шт.

36

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

37

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

38

87588344

TUBE,12.00mm OD x 380.40, 49.00mm

for Male Connector Protection

1шт.
