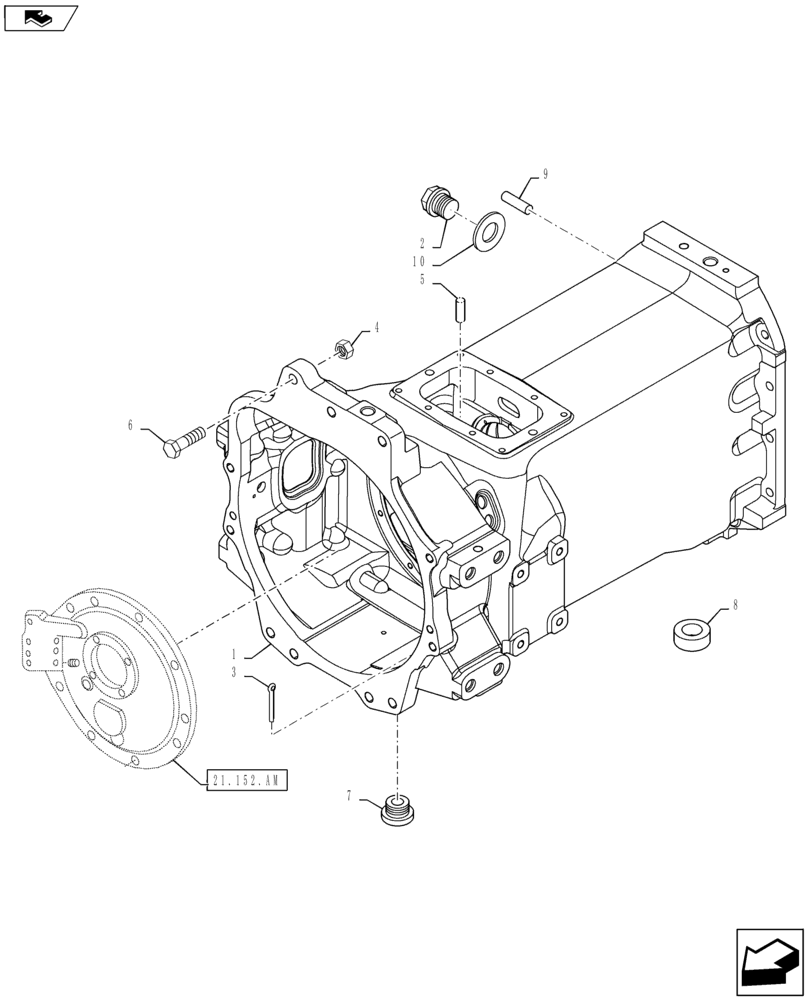

Запчасти Case IH MAXXUM 115 (21.111.AC) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - GEARBOX HOUSING (21) - TRANSMISSION

1

47132500

TRANSMISSION HOUSING

1шт.

2

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

2шт.

3

10798204

COTTER PIN,M6.3 x 32

1шт.

4

12164124

NUT,M16 x 1.5, Cl 8

2шт.

5

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

6

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

6

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

6

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

3шт.

6

15981534

BOLT,Hex, M16 x 1.5 x 90mm, Cl 10.9

2шт.

7

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

8

14328701

PLUG,M20, Tapered

2шт.

9

81863708

PIN

2шт.

10

10280060

SEAL,M14.2 x 20 x 1.5

2шт.
