Запчасти Case IH MAXXUM 115 (21.109.AE) - HYDRAULIC PUMP 113 L/MIN CCLS - BY PASS VALVE - BREAKDOWN (21) - TRANSMISSION

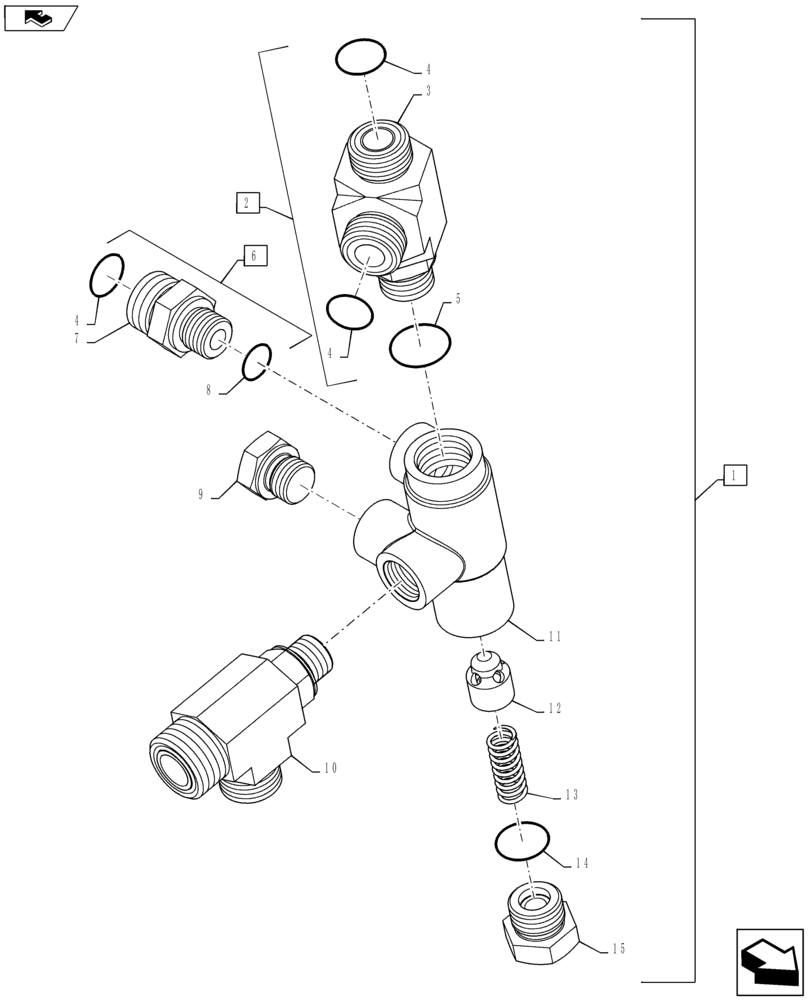

Схема запчастей Case IH MAXXUM 115 - (21.109.AE) - HYDRAULIC PUMP 113 L/MIN CCLS - BY PASS VALVE - BREAKDOWN (21) - TRANSMISSION
15
1
14
6
13
2
12
10
5
home
4
8
9
4
11
4
7
3

Артикул

Название

Примечание

Количество

1

84475697

BY-PASS VALVE

Incl 2 - 15

1шт.

2

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector Body, Incl in 2

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

Incl 4, 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Connector Body, Incl in 6

1шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

10

84332870

TEE

1шт.

11

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

12

5169565

VALVE,By-Pass

1шт.

13

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

47123781

PLUG,M22 x 1.5

1шт.

Выбрано товаров: 15
