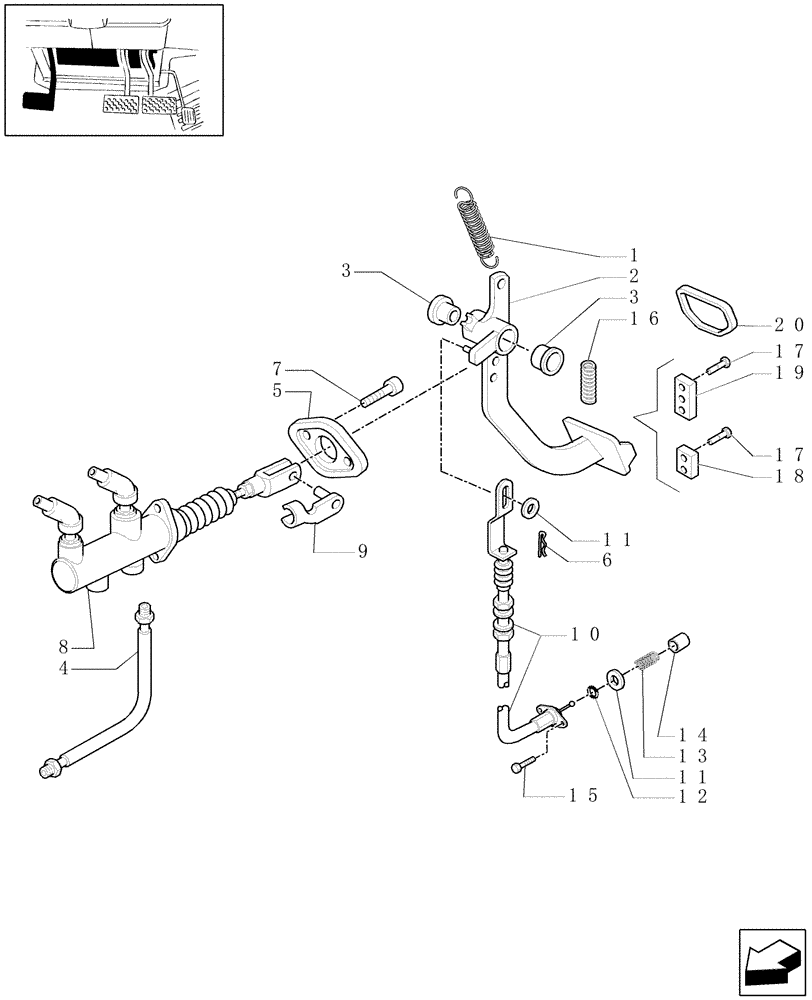

Запчасти Case IH MAXXUM 110 (1.95.2[01]) - TRANSMISSION 12X12 - CLUTCH PEDAL (10) - OPERATORS PLATFORM/CAB

1

87579190

SPRING,Extension, 22mm OD, 100mm L

1шт.

2

87566907

PEDAL ASSY.

Incl. 3, 20

1шт.

3

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

25 x 31 x 32

2шт.

4

82025753

TUBE

M12 x 1,640MM

1шт.

5

82024193

CUP

1шт.

6

86639114

COTTER PIN,M1.6 x 10

1.6 x 10

1шт.

7

13632821

CAPTIVE WASHER SCREW,M8 x 25mm

2шт.

8

82022421

MASTER CYLINDER,66.8mm Stroke

1шт.

9

87316560

PIN,10mm OD x 23mm L

1шт.

10

82027258

CABLE,739mm L

1шт.

11

83962575

WASHER,6.6mm ID x 12.5mm OD x 1.6mm Thk

2шт.

12

83900127

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

13

82850993

SPRING

1шт.

14

81867259

PLUNGER

1шт.

15

83944170

SCREW,Hex, M6 x 10mm, Gr 8.8

2шт.

16

87579187

SPRING

1шт.

17

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

18

82038627

BLOCK

1шт.

19

81870229

RETAINER

1шт.

20

82025747

RUBBER PEDAL PAD

1шт.
