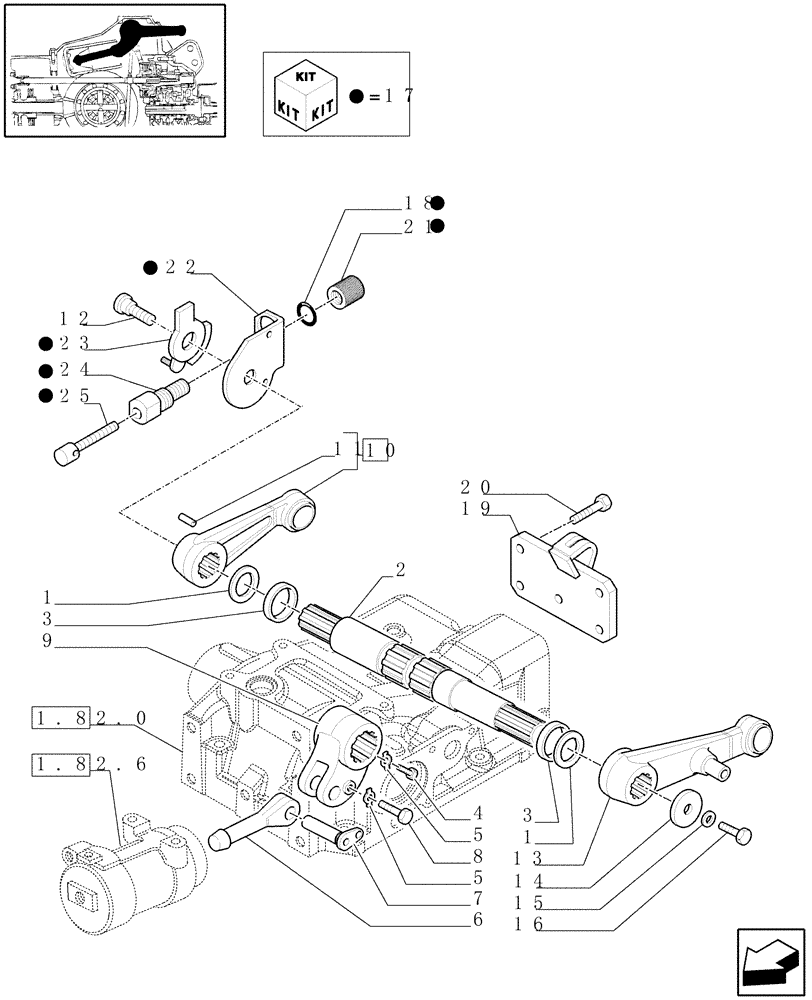

Запчасти Case IH MAXXUM 110 (1.82.8/02) - MDC FOR AUTOMATIC PICK UP HITCH - LIFT BOOMS (VAR.331840-333840-330900-331914) (07) - HYDRAULIC SYSTEM

1

5111082

SPACER,55mm ID x 90mm OD x 6mm L

2шт.

2

5117187

ROCKSHAFT,488mm L, 48T, 42T

1шт.

3

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

2шт.

4

5117190

SET SCREW,M10 x 1.25 x 23mm

1шт.

5

14198810

LOCKING PLATE,M10

2шт.

6

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

7

5122356

PIN,30mm OD x 74mm L

1шт.

8

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

9

5165510

ARM

1шт.

10

5179827

LIFT ARM

RH, Includes Ref. 11

1шт.

11

10335010

DOWEL,M5 x 22

1шт.

12

5194674

HEX SOC SCREW,Hex, M14 x 1.5 x 47mm

1шт.

13

5183178

LIFT ARM

LH

1шт.

14

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

1шт.

15

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

16

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

17

47134460

STOP

Includes Ref. 18

1шт.

18

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

19

82039505

SUPPORT

1шт.

20

11394321

BOLT,Hex, M14 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

20

11408324

BOLT,Hex, M14 x 1.5 x 35, 8.8, Full Thd

1шт.

21

47134218

KNOB

1шт.

22

87696283

SUPPORT

1шт.

23

47134217

SECTOR

TOOTHED SECTOR

1шт.

24

5194677

BOLT,Bolt

1шт.

25

47134219

ADJUSTMENT SCREW,M8 x 1.25 x 63mm L

1шт.
