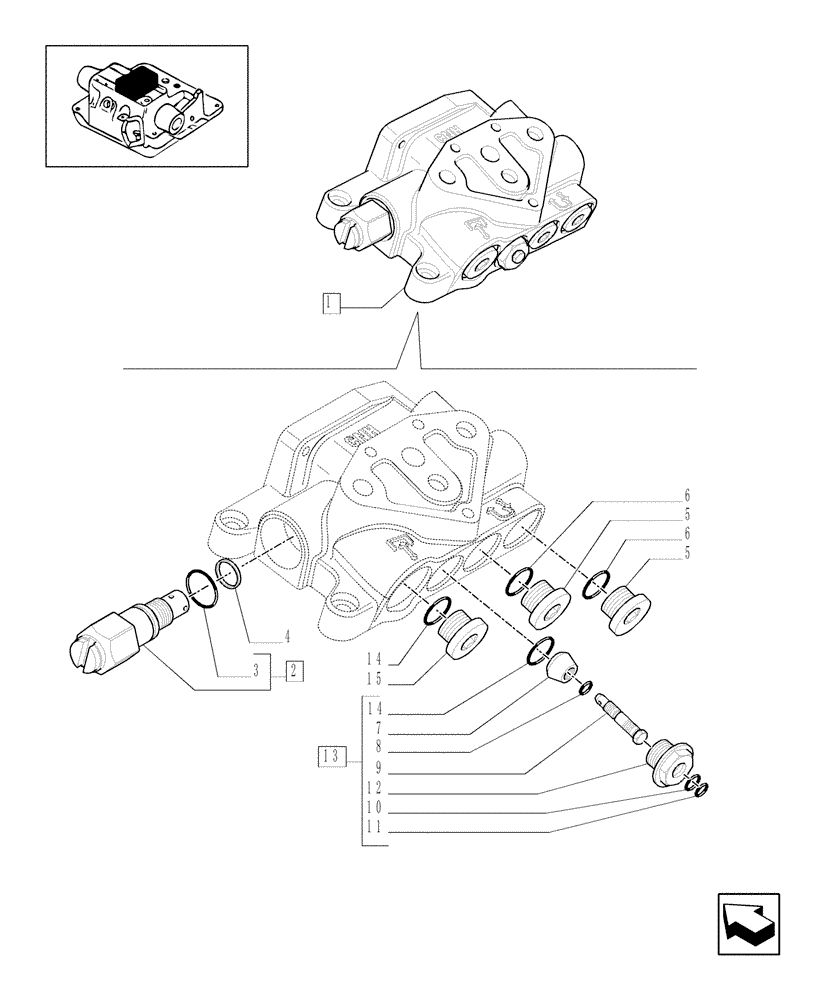

Запчасти Case IH MAXXUM 110 (1.82.7/ D) - INCOMING SIDE PANEL - PARTS COMPONENTS (07) - HYDRAULIC SYSTEM

1

87363889

MANIFOLD VALVE

ASSY

1шт.

2

87367783

VALVE PRESSURE RELIE

1шт.

3

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

4

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

5

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

2шт.

6

14438185

O-RING,24mm ID x 3mm

2шт.

7

47135841

PLUG

1шт.

8

11087876

CIRCLIP,M7

1шт.

9

87363956

SPECIAL BOLT

1шт.

10

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

11

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

12

87370071

BODY

M27x2

1шт.

13

87372883

SPOOL

ASSY

2шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

15

10119011

PLUG,M27 x 2 x 20, Cl5.8

1шт.
