Запчасти Case IH MAXXUM 110 (1.82.7/ A) - 2 REAR CONTROL VALVES - COMPONENTS PARTS (07) - HYDRAULIC SYSTEM

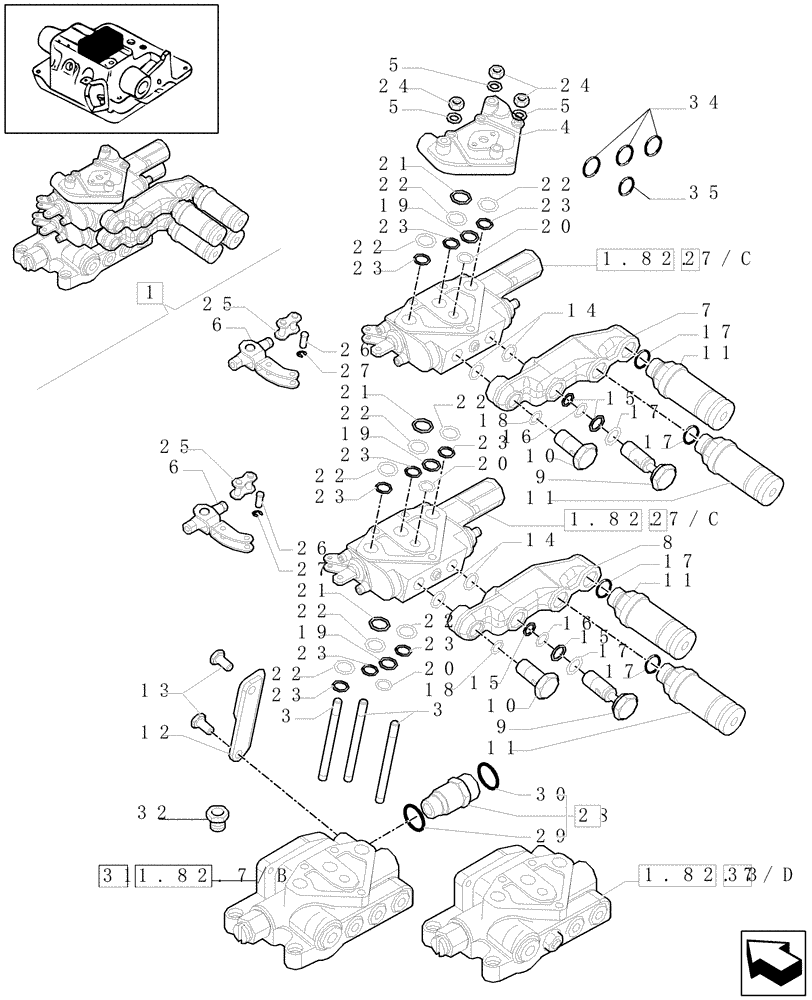

Схема запчастей Case IH MAXXUM 110 - (1.82.7/ A) - 2 REAR CONTROL VALVES - COMPONENTS PARTS (07) - HYDRAULIC SYSTEM
22
27
5
22
13
20
23
12
22
25
10
33
23
24
21
22
23
23
6
18
17
11
19
14
17
26
23
9
19
17
4
26
15
10
3
2
22
1
23
11
11
27
20
8
17
21
34
2
30
22
16
23
23
25
1.82.7/b
1.82.7/d
21
32
24
15
18
7
19
23
5
31
5
16
22
28
20
22
9
22
1.82.7/c
1.82.7/c
17
3
35
15
11
14
29
6
17

Артикул

Название

Примечание

Количество

1

87303619

HYDRAULIC VALVE

ASSY

1шт.

2

47123211

HYD VALVE SECTION

ASSY, Serial Range: -C5500

2шт.

2

87396804

VALVE SECTION

, Start Serial: D5500

2шт.

3

5150104

STUD,3/8" - 24 x 5"

3шт.

4

87303247

END PLATE

, Serial Range: -C5500

1шт.

4

87396840

END PLATE

, Start Serial: D5500

1шт.

5

10569471

LOCK WASHER,Lock, 3/8"

3шт.

6

87393956

CONTROL LEVER

2шт.

7

87559221

MANIFOLD VALVE

Upper

1шт.

8

87559220

MANIFOLD VALVE

Central

1шт.

9

47135700

BANJO BOLT

2шт.

10

47136004

BANJO BOLT

2шт.

11

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

Incl. 17, include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

12

47127567

SUPPORT

1шт.

13

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

4шт.

15

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

4шт.

16

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

18

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

19

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

, Serial Range: -C5500

3шт.

20

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

, Serial Range: -C5500

3шт.

21

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

, Serial Range: -C5500

3шт.

22

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

, Serial Range: -C5500

9шт.

23

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

, Serial Range: -C5500

9шт.

24

5116857

NUT,3/8" - 24

3шт.

25

5116896

LINK,19.05mm Pitch

, Serial Range: -C5776

2шт.

25

87658153

LINK,19.05mm Pitch

, Start Serial: D5776

2шт.

26

5172456

PIN,6mm OD x 20mm L

2шт.

27

11087776

CIRCLIP,Ext., M6, BLO

2шт.

28

47125148

HYD CONNECTOR

1-3/16",M22 x 1.5, Incl. 29, 30

1шт.

29

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

30

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

31

87363884

MANIFOLD VALVE

ASSY

1шт.

32

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

33

87363889

MANIFOLD VALVE

ASSY

1шт.

for Loader Ready with Mechanical Joystick

1шт.

34

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3, Start Serial: D5500

9шт.

35

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING, Start Serial: D5500

3шт.

Выбрано товаров: 40
