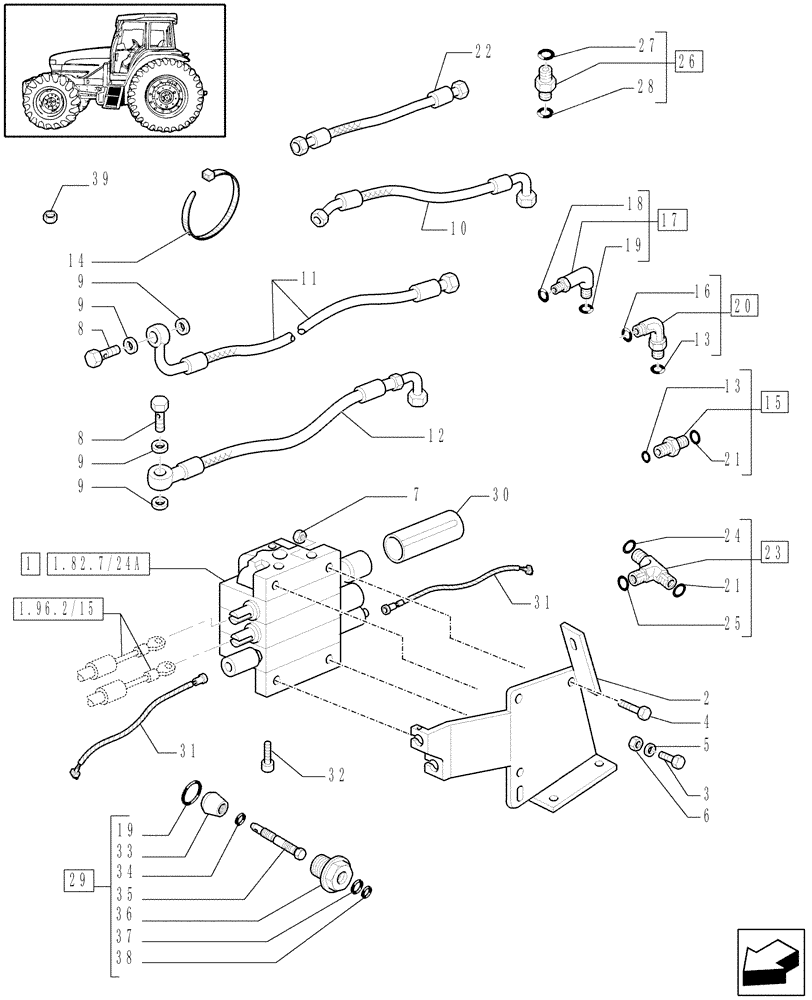

Запчасти Case IH MAXXUM 110 (1.82.7/34) - THREE MID MOUNTED REMOTE VALVES - PIPES AND VALVE (VAR.331562-332562) (07) - HYDRAULIC SYSTEM

1

87324662

DISTRIBUTOR

1шт.

2

87568641

BRACKET

1шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10x35

2шт.

4

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

M12x1.25x40

2шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

10

87325050

HYDRAULIC HOSE

MMV Power Beyond, 2050MM

1шт.

11

82034041

FLEXIBLE HOSE,15.88mm ID x 750mm L, SAE 100R2

MMV Return, 680MM

1шт.

12

87736275

HYDRAULIC HOSE,15.88mm ID x 2000mm L, SAE 100R2

MMV Inlet Supply, 2000MM

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

14

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

14

14560287

CABLE TIE,207.00mm L

COLLAR 13/16"-16 UN-2A/M22x1,5

1шт.

15

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1.78 x 12.42

1шт.

17

82034042

ELBOW

1-3/16"-12 UN-2A/M27x2

1шт.

18

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

19

14438185

O-RING,24mm ID x 3mm

2шт.

20

5194728

90 ELBOW

13/16"-16

1шт.

21

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

9/16"-18/M10x1

2шт.

22

87535356

FLEXIBLE HOSE

Pilot Pressure, 700MM

1шт.

23

87314900

HYD CONNECTOR

1шт.

24

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

25

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

5185045

HYD CONNECTOR

9/16"-18/M12x1.5

1шт.

27

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

28

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

29

87372883

SPOOL

ASSY

1шт.

30

87324672

PROTECTION CAP

1шт.

31

87389074

ELECTRIC CABLE

2шт.

32

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

33

47135841

PLUG

1шт.

34

11087876

CIRCLIP,M7

1шт.

35

87363956

SPECIAL BOLT

1шт.

36

87370071

BODY

M27x2

1шт.

37

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1.78 x 6.75

1шт.

38

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

39

47123020

PLUG,Hex

13/16 - 16

1шт.

39

83987627

CAP,1-14UN-2A

1" - 14

1шт.
