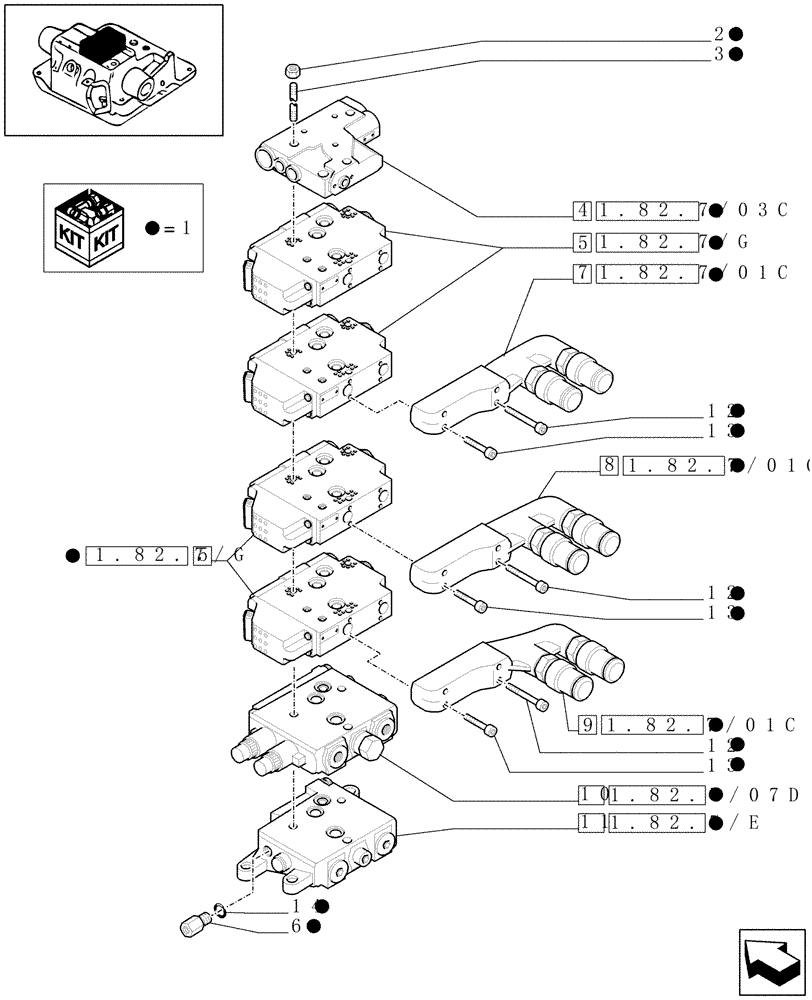

Запчасти Case IH MAXXUM 110 (1.82.7/18B) - 4 CCLS (EDC) ELECTRONIC CONTROL VALVES (EHS1) AND ASSOCIATED PARTS (VAR.330862-331862) (07) - HYDRAULIC SYSTEM

1

84266085

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

4шт.

5

84230181R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 all (1/07-)

4шт.

5

84230181C

CORE-VALVE HYD

Return Number

4шт.

6

5191704

CHECK VALVE

Incl.14

1шт.

7

87381964

QUICK MALE COUPLING

ASSY

1шт.

8

87381963

QUICK MALE COUPLING

ASSY

1шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

84175671

VALVE SECTION

ASSY

1шт.

10

84175671R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 all (1/07-)

1шт.

10

84175671C

CORE-VALVE HYD

1шт.

11

87730706

CONTROL VALVE

ASSY

1шт.

11

87730706R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 ALL (1/07-)

1шт.

11

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
