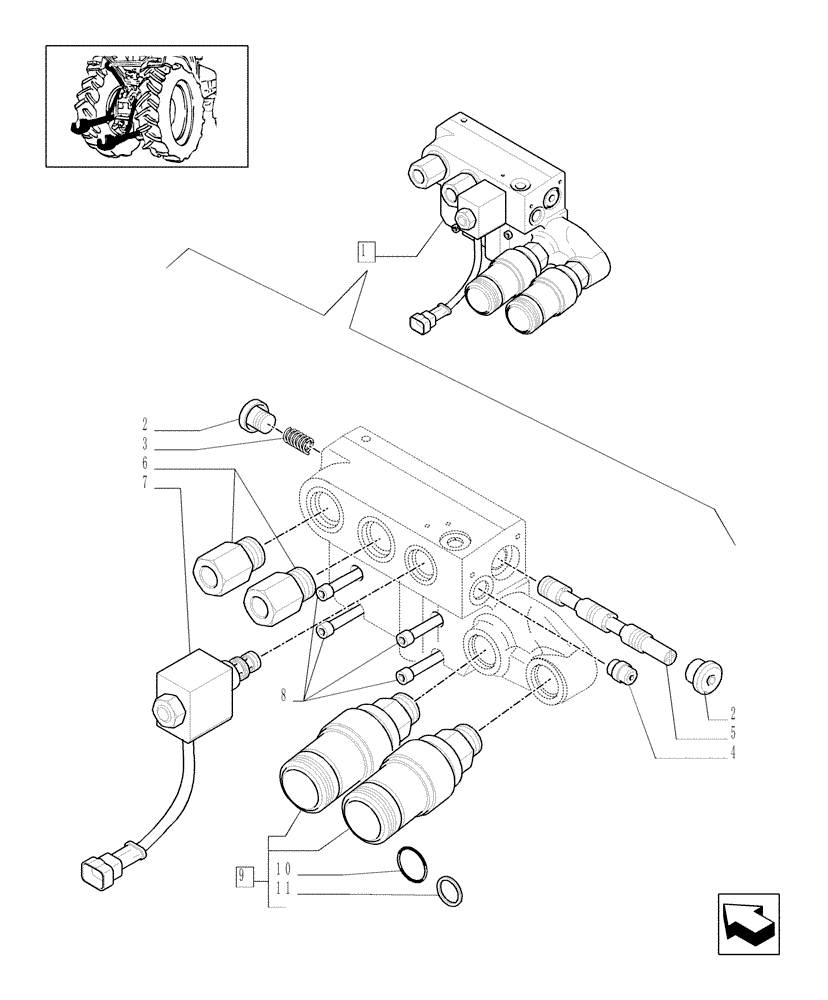

Запчасти Case IH MAXXUM 110 (1.82.7/15A) - CONTROL VALVE - COMPONENT PARTS (VAR.334845-330862-331862) (07) - HYDRAULIC SYSTEM

1

87381996

CONTROL VALVE

ASSY

1шт.

2

47134646

PLUG

2шт.

3

47134647

SPRING

1шт.

4

47134651

VALVE POPPET

1шт.

5

47134650

SPOOL

1шт.

6

47134645

HYD CONNECTOR

2шт.

7

47134652

SOLENOID VALVE

1шт.

8

14305824

SCREW,M6 x 40mm, Cl 8.8

4шт.

9

87381944

COUPLING, QUICK, FEM

2шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

47134601

SEAL

With O Ring

1шт.
