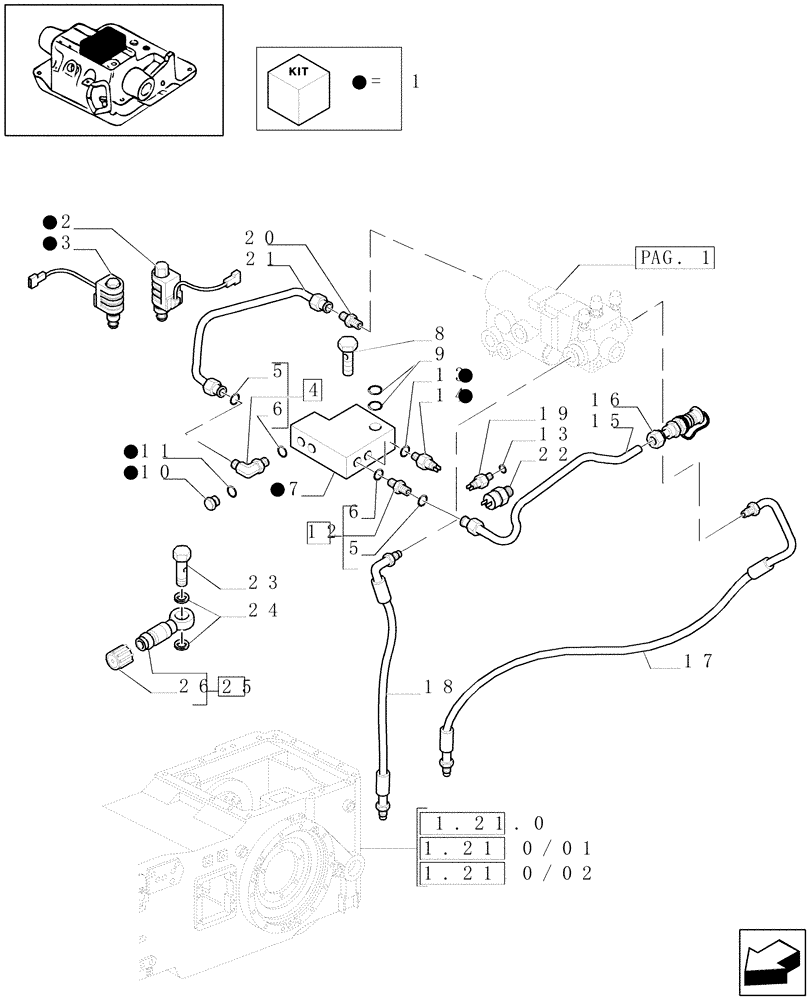

Запчасти Case IH MAXXUM 110 (1.82.714[02]) - TRAILER BRAKE VALVE (ITALY) - VALVE PIPES (VAR.330723-331723) (07) - HYDRAULIC SYSTEM

1

5196175

BRAKE VALVE

ASSY

1шт.

2

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Trailer Brake

1шт.

3

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Trailer Brake

1шт.

4

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16, M18X1,5, Incl. 5, 6

1шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

2шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

7

5196170

BLOCK

1шт.

8

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

M18 x 1.5

2шт.

10

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

12

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Incl. 5, 6

1шт.

13

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

14

82030730

SWITCH ASSY

Oil Pressure, Serial Range: -C5703

1шт.

14

5157750

PRESSURE SWITCH

, Serial Range: D5703-C6395

1шт.

14

87494633

PRESSURE SWITCH

Oil Pressure, Start Serial: D6395

1шт.

15

47126091

HYD TUBE

1шт.

16

44015354

QUICK MALE COUPLING

1шт.

17

5196663

FLEXIBLE HOSE

RH

1шт.

18

5196661

FLEXIBLE HOSE,4.75mm ID x 350mm L

LH

1шт.

19

5161047

PRESSURE SWITCH

3 Bar, VAR. 330723, Serial Range: -C6395

1шт.

19

82033989

SWITCH ASSY

Pressure, Trailer Brake, VAR. 331723, Serial Range: -C5584

1шт.

19

87494632

PRESSURE SWITCH,M12 x 1.5

3 Bar, Start Serial: D6395

1шт.

20

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

21

47124762

HYD TUBE

13/16"-16

1шт.

22

87604423

SWITCH ASSY

Pressure, Trailer Brake, 15 Bar, VAR. 331723, Start Serial: D5584

1шт.

23

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

24

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

25

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

26

44995074

PLUG,M8 x 1.0

1шт.
