Запчасти Case IH MAXXUM 110 (1.82.7/13A) - 4 REMOTES (2NC+2CONFIG) FOR CCLS PUMP FOR MDC AND RELEVANT PARTS (VAR.335845) (07) - HYDRAULIC SYSTEM

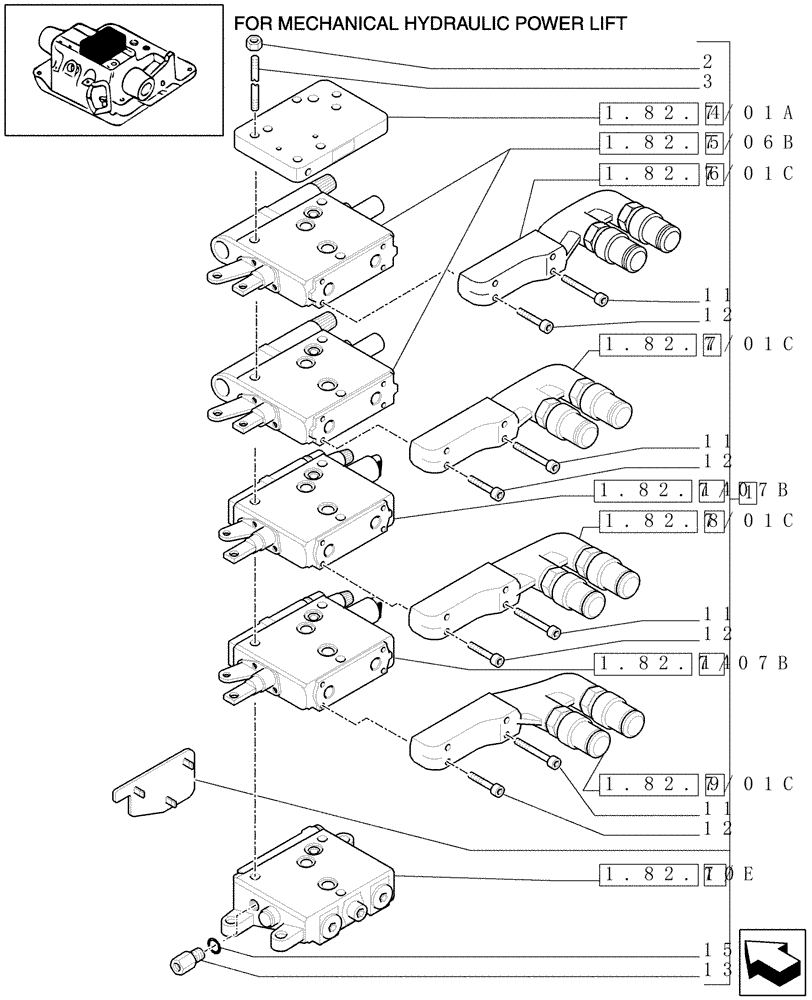

Схема запчастей Case IH MAXXUM 110 - (1.82.7/13A) - 4 REMOTES (2NC+2CONFIG) FOR CCLS PUMP FOR MDC AND RELEVANT PARTS (VAR.335845) (07) - HYDRAULIC SYSTEM
6
8
11
12
1
15
11
3
14
5
13
12
14
1.82.7/e
1.82.7/01c
1.82.7/01c
1.82.7/01a
1.82.7/06b
1.82.7/07b
1.82.7/01c
1.82.7/07b
1.82.7/01c
11
12
2
11
4
7
9
12
10

Артикул

Название

Примечание

Количество

1

87311425

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

ASSY

1шт.

5

87546169

CONTROL VALVE

ASSY

2шт.

5

87546169R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 125 all TRACTOR (1/07-)

2шт.

5

87546169C

CORE-VALVE HYD

Return Number

2шт.

6

87381965

QUICK MALE COUPLING

ASSY

1шт.

7

87381964

QUICK MALE COUPLING

ASSY

1шт.

8

87381963

QUICK MALE COUPLING

ASSY

1шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

87730706

CONTROL VALVE

ASSY

1шт.

10

87730706R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 125 ALL (1/07-)

1шт.

10

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

13

5191704

CHECK VALVE

Incl. 15

1шт.

14

87328572

HYD VALVE SECTION

ASSY

2шт.

14

87328572R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 125, ALL (1/07-)

2шт.

14

87328572C

CORE-VALVE HYD

Return Number

2шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 21
