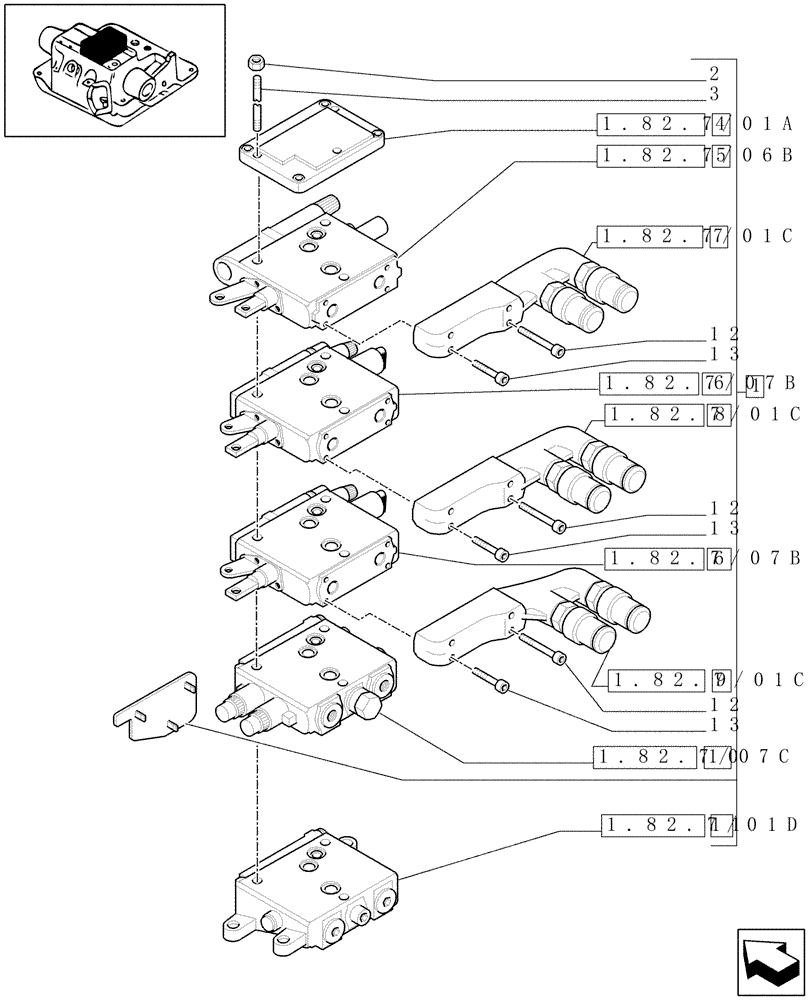

Запчасти Case IH MAXXUM 110 (1.82.7/09A) - 3 REMOTES (1NC+2CONFIG) FOR FIXED DISPLACEMENT PUMP FOR MDC AND RELEVANT PARTS (VAR.331844) (07) - HYDRAULIC SYSTEM

1

87311383

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

CL 10, M8 x 1.25

3шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

ASSY

1шт.

5

87546169

CONTROL VALVE

ASSY

1шт.

87546169R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 125, MAXXUM 140 all TRACTOR (1/07-)

1шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

5191704

CHECK VALVE

1шт.

6

87328572

HYD VALVE SECTION

ASSY

2шт.

87328572R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 125, MAXXUM 140, ALL (1/07-)

2шт.

87328572C

CORE-VALVE HYD

Return Number

1шт.

7

87381964

QUICK MALE COUPLING

ASSY

1шт.

8

87381963

QUICK MALE COUPLING

ASSY

1шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

87546170

CONTROL VALVE

ASSY

1шт.

84175671R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 125, MAXXUM 140 all (1/07-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192186

DISTRIBUTOR

ASSY

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.
