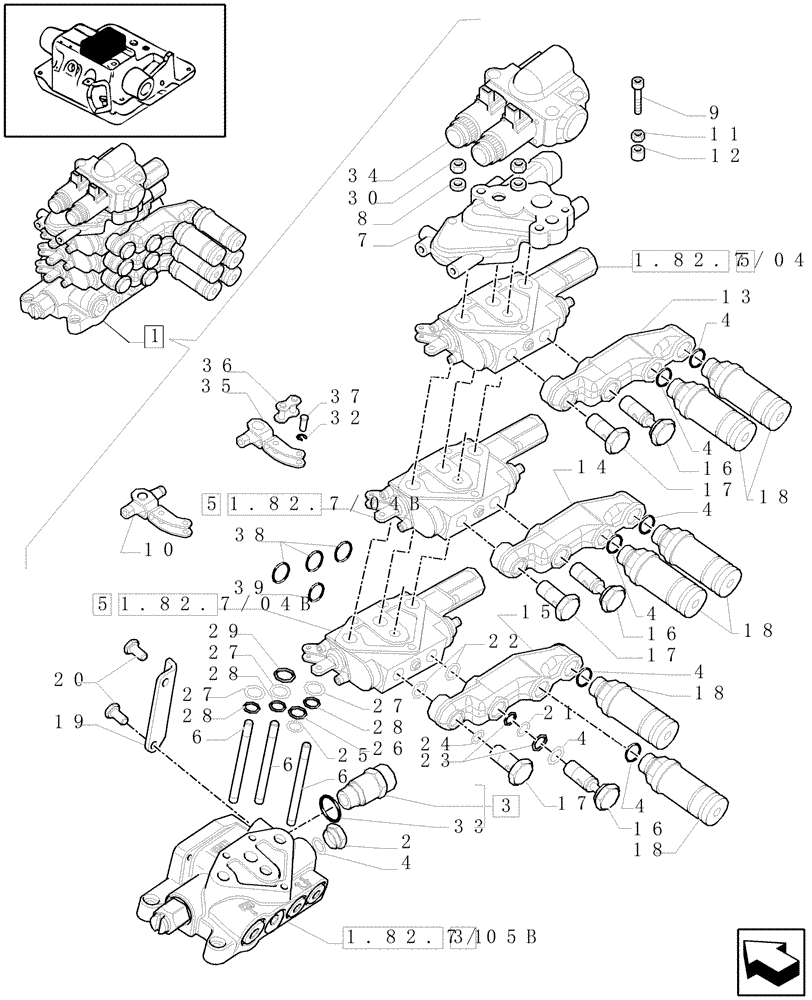

Запчасти Case IH MAXXUM 110 (1.82.7/05A) - 3 REMOTE VALVE & RELATED PARTS (VAR.331851) (07) - HYDRAULIC SYSTEM

1

87325126

HYDRAULIC VALVE

ASSY

1шт.

2

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

3

47125148

HYD CONNECTOR

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

10шт.

5

87396804

VALVE SECTION

ASSY

3шт.

6

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

7

87396841

FLANGE

1шт.

8

10569471

LOCK WASHER,Lock, 3/8"

3шт.

9

87325125

STUD

3шт.

10

87393956

CONTROL LEVER

3шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

12

47136143

SPACER,8.5mm ID x 14mm OD x 12mm L

3шт.

13

87559221

MANIFOLD VALVE

Upper

1шт.

14

87559220

MANIFOLD VALVE

Central

1шт.

15

87559219

MANIFOLD VALVE

Lower

1шт.

16

47135700

BANJO BOLT

3шт.

17

47136004

BANJO BOLT

3шт.

18

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

Incl. 4, include p/n 1534623C1

6шт.

1534623C1

SEAL KIT

1шт.

19

47127568

SUPPORT

1шт.

20

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

21

14457281

O-RING,0.612" ID x 0.103" Width

3шт.

22

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

6шт.

23

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

6шт.

24

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

25

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

, Serial Range: -C5500

4шт.

26

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

, Serial Range: -C5500

4шт.

27

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

, Serial Range: -C5500

12шт.

28

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

1-3/16",M22 x 1.5, Includes Ref. 29, 30, Serial Range: -C5500

12шт.

29

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

2.4 x 19.3, Serial Range: -C5500

4шт.

30

5116857

NUT,3/8" - 24

3.53 x 32.92

3шт.

31

87363884

MANIFOLD VALVE

ASSY

1шт.

32

11087776

CIRCLIP,Ext., M6, BLO

3шт.

33

14458381

O-RING,32.99mm ID x 2.62" Width

1шт.

34

87551652

CONTROL VALVE

1шт.

35

47123263

CONTROL LEVER

3шт.

36

5116896

LINK,19.05mm Pitch

, Serial Range: -C5776

3шт.

36

87658153

LINK,19.05mm Pitch

, Start Serial: D5776

3шт.

37

5172456

PIN,6mm OD x 20mm L

3шт.

38

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3, Start Serial: D5500

12шт.

39

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING, Start Serial: D5500

4шт.
