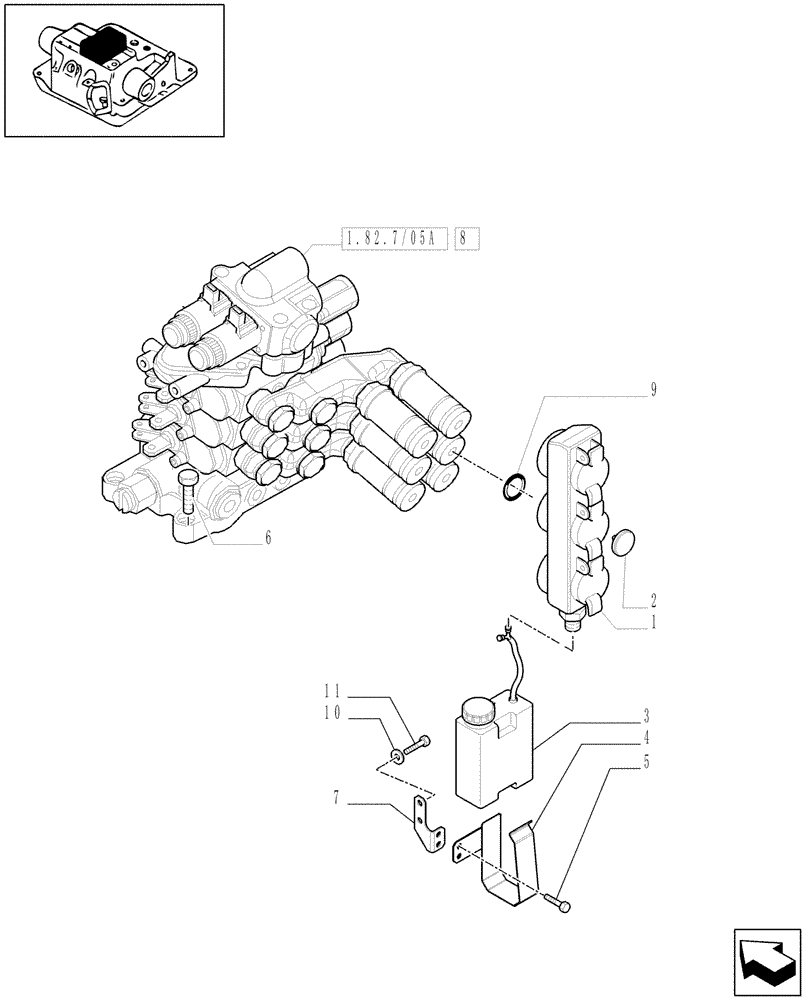

Запчасти Case IH MAXXUM 110 (1.82.7/05[01A]) - 3 REMOTES FOR EDC - REMOTES AND RELATIVE PARTS - D6788 (VAR.331851) (07) - HYDRAULIC SYSTEM

1

84290177

DUST CAP

Incl. 2, 9, Serial Range: -C7117

2шт.

1

84338823

DUST CAP

Incl. 2, 9, Start Serial: D7117

2шт.

2

82029895

DISC,20mm D, Black

Black

6шт.

3

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

1шт.

3

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

4

84312030

SUPPORT

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

6

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

84311423

SUPPORT

1шт.

8

87325126

HYDRAULIC VALVE

ASSY

1шт.

9

14454580

O-RING,34.65mm ID x 1.78mm

3шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
