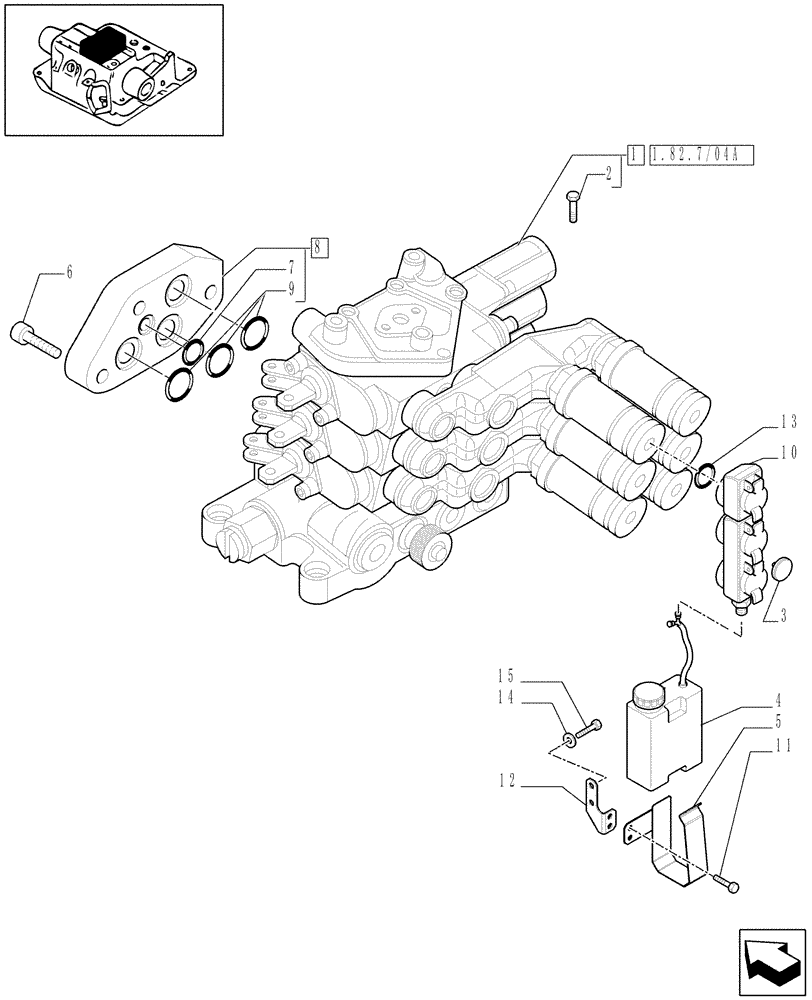

Запчасти Case IH MAXXUM 110 (1.82.7/04[01A]) - 3 REMOTE CONTROL VALVES FOR 63L/MIN FD PUMP AND MDC - REMOTES AND RELATIVE PARTS - D6788 (VAR.330851) (07) - HYDRAULIC SYSTEM

1

87303617

HYDRAULIC VALVE

ASSY

1шт.

2

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

3

82029895

DISC,20mm D, Black

Black

6шт.

4

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

1шт.

4

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

5

84312030

SUPPORT

1шт.

6

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

7

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

8

5199101

COVER

1шт.

9

81862872

O-RING,2.4mm Thk x 19.6mm ID

20 x 1.5

3шт.

10

84290177

DUST CAP

Incl. 3, 13, Serial Range: -C7117

2шт.

10

84338823

DUST CAP

Incl. 3, 13, Start Serial: D7117

2шт.

11

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

12

84311423

SUPPORT

1шт.

13

14454580

O-RING,34.65mm ID x 1.78mm

3шт.

14

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
