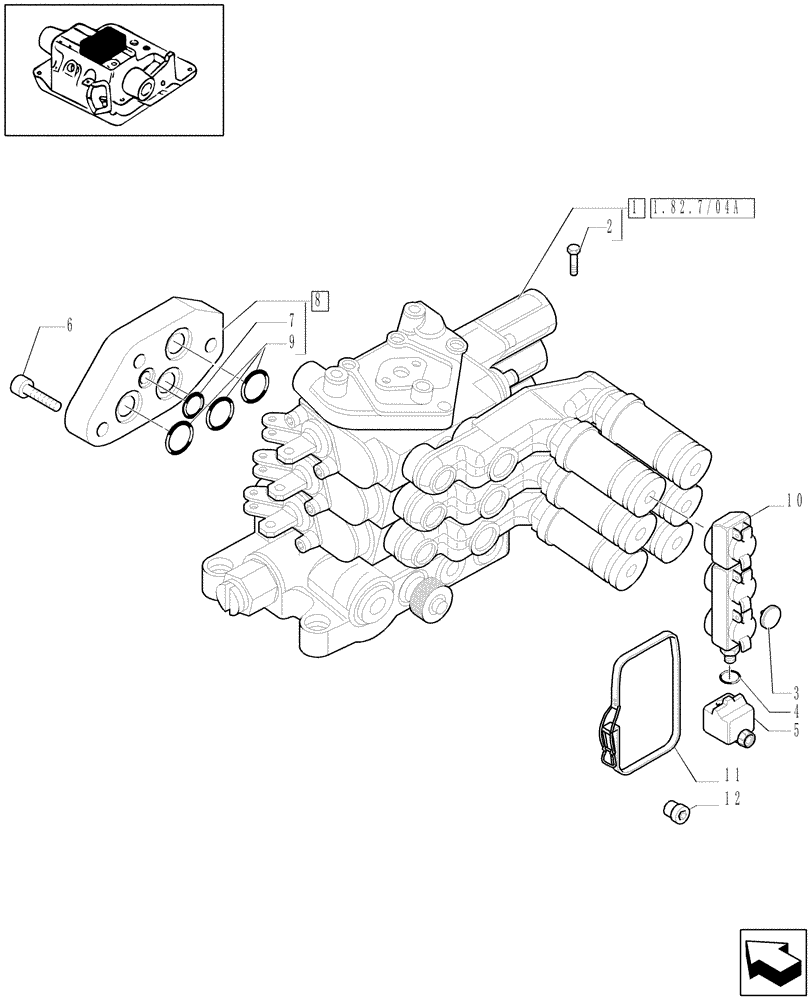

Запчасти Case IH MAXXUM 110 (1.82.7/04[01]) - 3 REMOTE CONTROL VALVES FOR 63L/MIN FD PUMP AND MDC - REMOTES AND RELATIVE PARTS - C6788 (VAR.330851) (07) - HYDRAULIC SYSTEM

1

87303617

HYDRAULIC VALVE

ASSY

1шт.

2

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

3

82029893

LENS

Blue, Serial Range: -C5909

2шт.

3

82029892

LENS

Green, Serial Range: -C5909

2шт.

3

82029894

DISC,20mm OD x 5.5mm Thk, Green, PA6+30% Glass Fiber

Brown, Serial Range: -C5909

2шт.

3

82029895

DISC,20mm D, Black

Black, Start Serial: D5909

6шт.

4

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

5

82031972

RESERVOIR, HYDRAULIC

100MM wide, Serial Range: -C5736

2шт.

5

87652228

RESERVOIR, HYDRAULIC

, Serial Range: D5736-C6264

2шт.

5

84161329

BOTTLE

, Start Serial: D6264

2шт.

6

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

7

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

8

5199101

COVER

1шт.

9

81862872

O-RING,2.4mm Thk x 19.6mm ID

20 x 1.5

3шт.

10

87348807

SHIELD

, Serial Range: -C5909

2шт.

10

87733576

DUST CAP

Incl. 3, Start Serial: D5909

2шт.

11

82031973

SPRING CLIP

1шт.

12

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.
