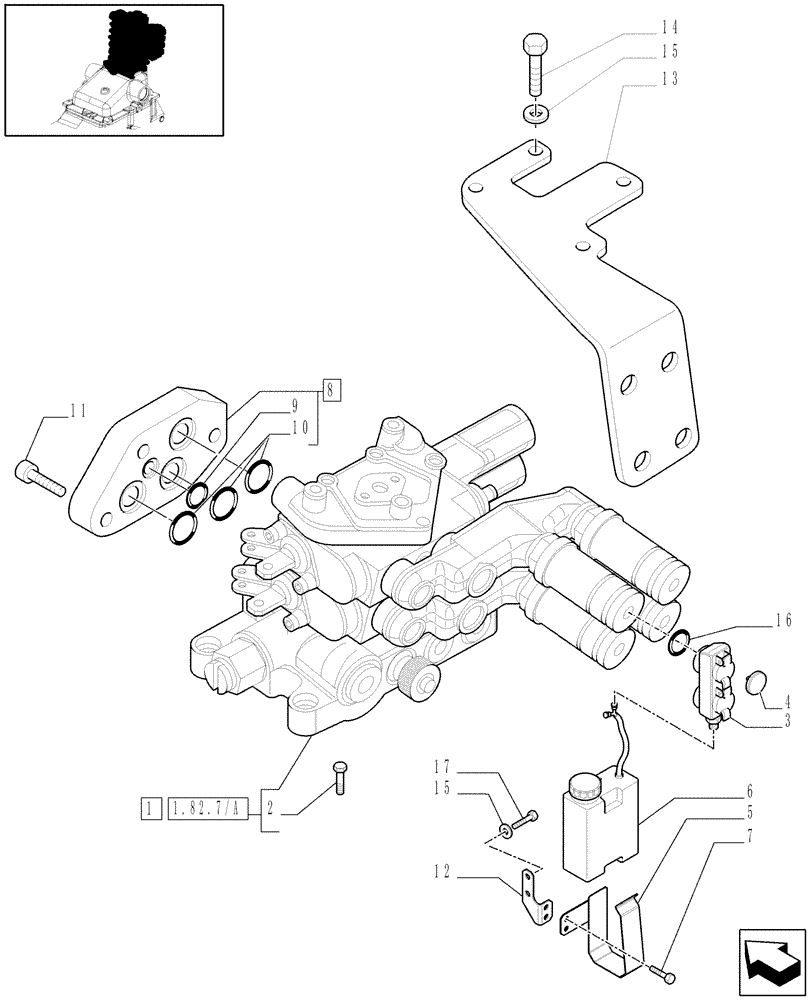

Запчасти Case IH MAXXUM 110 (1.82.7[01A]) - 2 REAR CONTROL VALVES AND RELATED PARTS FOR FD PUMP (63 L/MIN) AND MDC - D6788 (07) - HYDRAULIC SYSTEM

1

87303619

HYDRAULIC VALVE

ASSY, Incl. 2

1шт.

2 Remote Control Valves Pack "KONTAC"

1шт.

2

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

3

84293791

DUST CAP

Incl. 4,16, Serial Range: -C7117

2шт.

3

84319182

DUST CAP

Incl. 4,16, Start Serial: D7117

2шт.

4

82029895

DISC,20mm D, Black

Black

4шт.

5

84312030

SUPPORT

1шт.

6

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

1шт.

6

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

7

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

8

5199101

COVER

Incl. 9, 10

1шт.

9

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

10

81862872

O-RING,2.4mm Thk x 19.6mm ID

20 x 1.5

3шт.

11

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

12

84211423

1шт.

13

87499713

BRACKET

1шт.

14

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

15

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

16

14454580

O-RING,34.65mm ID x 1.78mm

2шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
