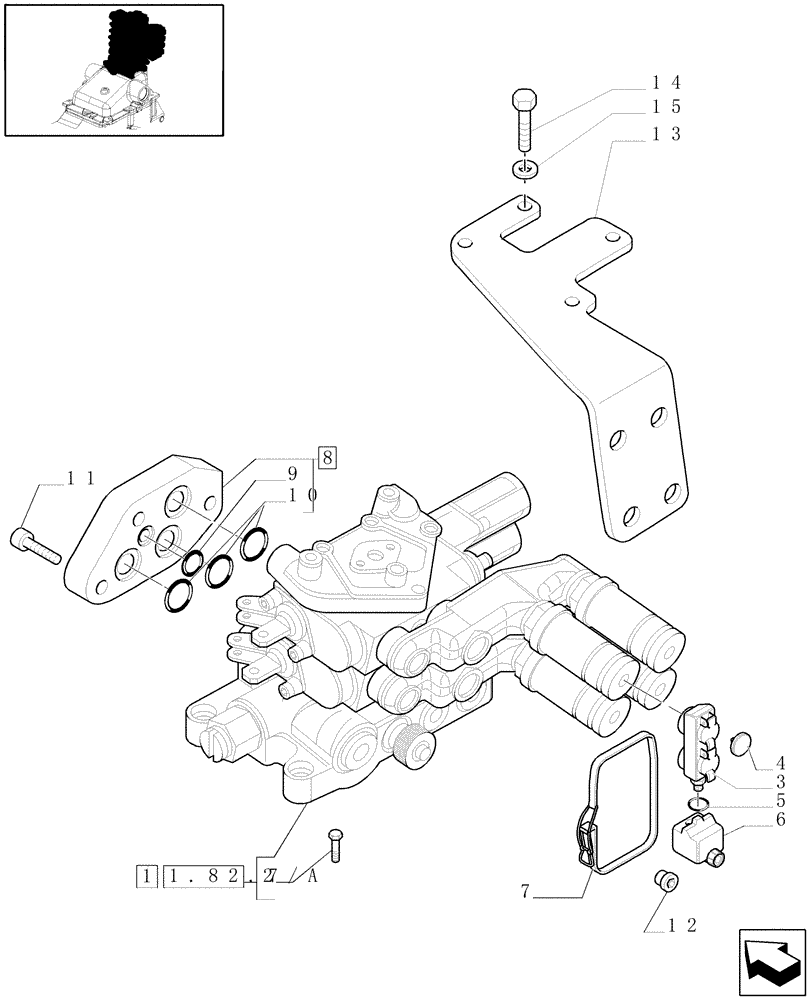

Запчасти Case IH MAXXUM 110 (1.82.7[01]) - 2 REAR CONTROL VALVES AND RELATED PARTS FOR FD PUMP (63 L/MIN) AND MDC - C6788 (07) - HYDRAULIC SYSTEM

1

87303619

HYDRAULIC VALVE

ASSY, Incl. 2

1шт.

2 Remote Control Valves Pack "KONTAC"

1шт.

2

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

3

82035718

DUST CAP

Incl. 4, Serial Range: -C5909

2шт.

3

87733574

DUST CAP

Incl. 4, Start Serial: D5909

2шт.

4

82029895

DISC,20mm D, Black

Black

4шт.

5

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

6

82031972

RESERVOIR, HYDRAULIC

100MM, Serial Range: -C5736

2шт.

6

87652228

RESERVOIR, HYDRAULIC

, Serial Range: D5736-C6264

2шт.

6

84161329

BOTTLE

, Start Serial: D6264

2шт.

7

82031973

SPRING CLIP

1шт.

8

5199101

COVER

Incl. 9, 10

1шт.

9

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

10

81862872

O-RING,2.4mm Thk x 19.6mm ID

20 x 1.5

3шт.

11

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

12

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

13

87499713

BRACKET

1шт.

14

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

15

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
