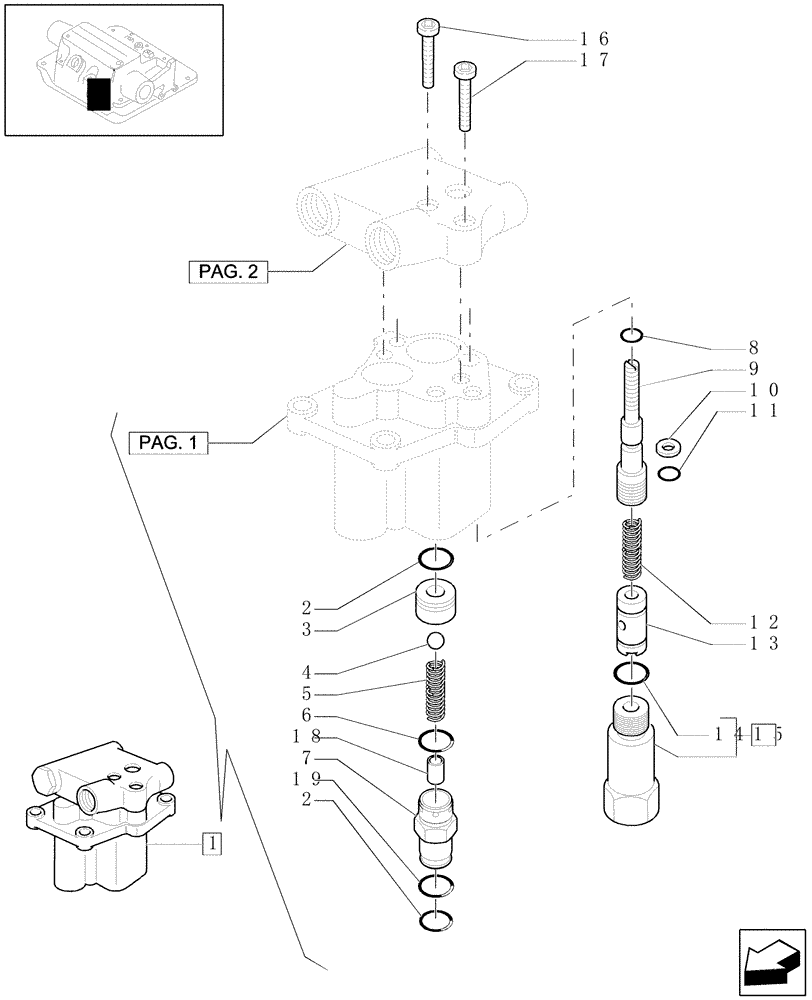

Запчасти Case IH MAXXUM 110 (1.82.4[03]) - LIFTER, DISTRIBUTOR AND VALVES - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

47135710

CONTROL VALVE

1шт.

2

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

3

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

4

20063580

BALL,13.49mm OD, Gr 100

D=17/32

1шт.

5

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

6

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

7

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

8

13397476

SNAP RING,M10.8, Int

1шт.

9

5155832

PIN,16mm OD x 81mm L

1шт.

10

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

11

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

12

5155844

SPRING,Compression, 11mm OD x 34mm L

1шт.

13

5163620

SPOOL

1шт.

14

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

15

5117739

VALVE PRESSURE RELIE,M20 x 1.5

Incl. 14

1шт.

16

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

17

14308321

HEX SOC SCREW,M10 x 1.25 x 70mm, Cl 8.8

1шт.

18

5148905

SPACER,3mm Thk

1шт.

19

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.
