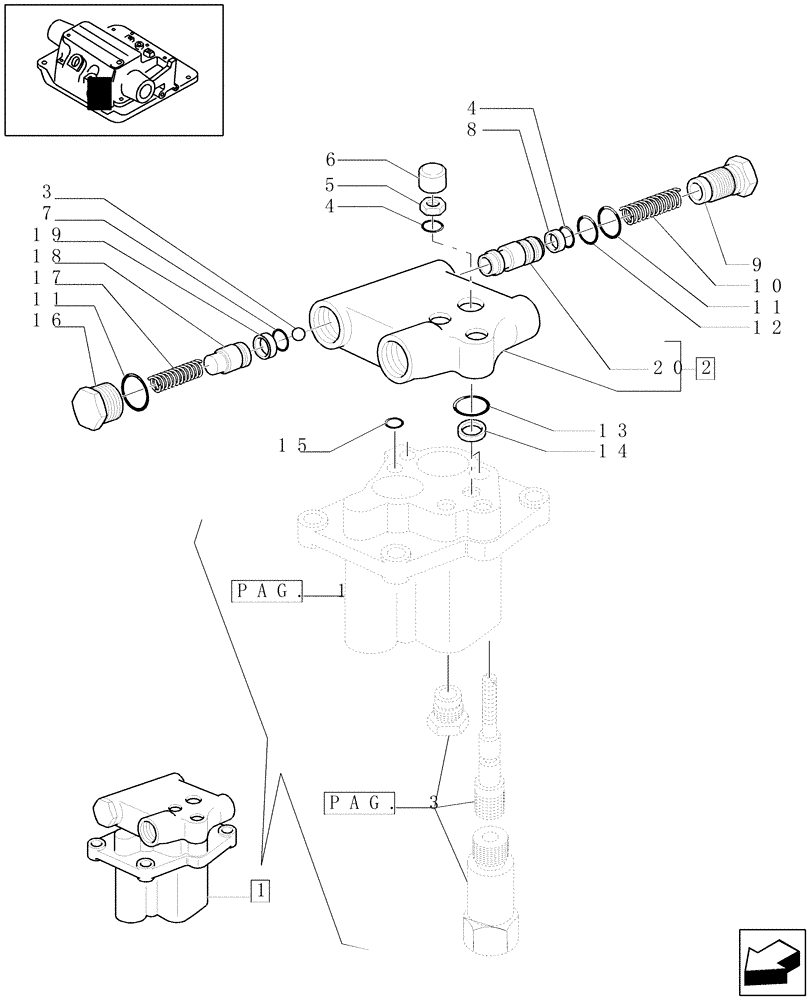

Запчасти Case IH MAXXUM 110 (1.82.4[02]) - LIFTER, DISTRIBUTOR AND VALVES - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

47135710

CONTROL VALVE

1шт.

2

5155826

COVER

Incl. 20

1шт.

3

20063460

BALL,7.14mm OD, Gr 100

D=7.144

1шт.

4

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

M8.73 ID x 1.78 Thk

2шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

6

5132136

CAP COVER,M8

1шт.

7

14456881

O-RING,0.362" ID x 0.103" Width

1шт.

8

5137198

GUIDE RING,8.6mm ID x 13mm OD x 2.3mm W

D=13x2.2

1шт.

9

5156465

PLUG,M20 x 1.5

1шт.

10

5156466

SPRING

1шт.

11

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

12

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

13

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

14

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

2шт.

15

14452680

O-RING,0.208" ID x 0.07" Width

2шт.

16

5155828

PLUG,M20 x 1.5

M20 x 1.5

1шт.

17

4999311

SPRING

1шт.

18

5155830

PISTON

1шт.

19

5155831

GUIDE RING,9.2mm ID x 16mm OD x 3.3mm L

D=16x3.2

1шт.

20

5158289

SPOOL

1шт.
