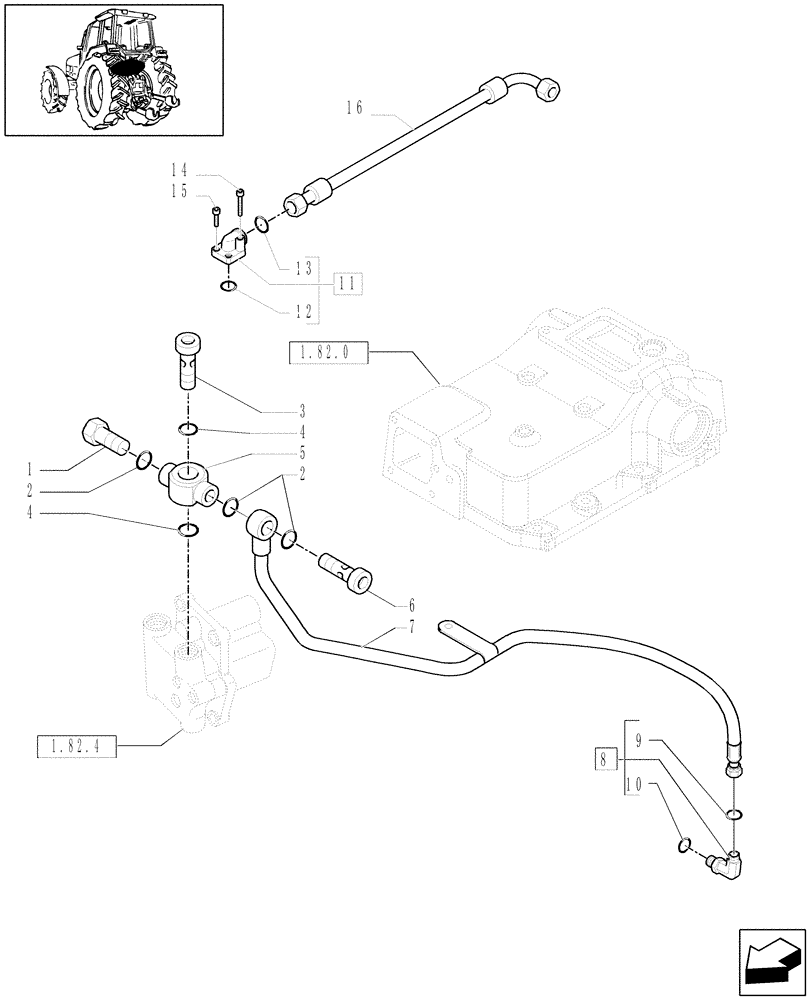

Запчасти Case IH MAXXUM 110 (1.82.1) - FIXED DELIVERY PUMP WITH 12X12/16X16/24X24 GEARBOX - HYDRAULIC LIFT PIPES (07) - HYDRAULIC SYSTEM

1

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

2

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

3

47131904

BANJO BOLT

1шт.

4

221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

RH

2шт.

5

47131903

RING

1шт.

6

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

7

47133581

HYD TUBE

LH

1шт.

8

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

1шт.

9

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

10

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

11

47134223

FLANGE

1шт.

12

14458381

O-RING,32.99mm ID x 2.62" Width

1шт.

13

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

14

14306921

HEX SOC SCREW,M8 x 50mm, Cl 8.8

2шт.

14

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

4шт.

15

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

15

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

16

87304916

HOSE,16mm ID x 640mm L, SAE 100R16

1шт.
