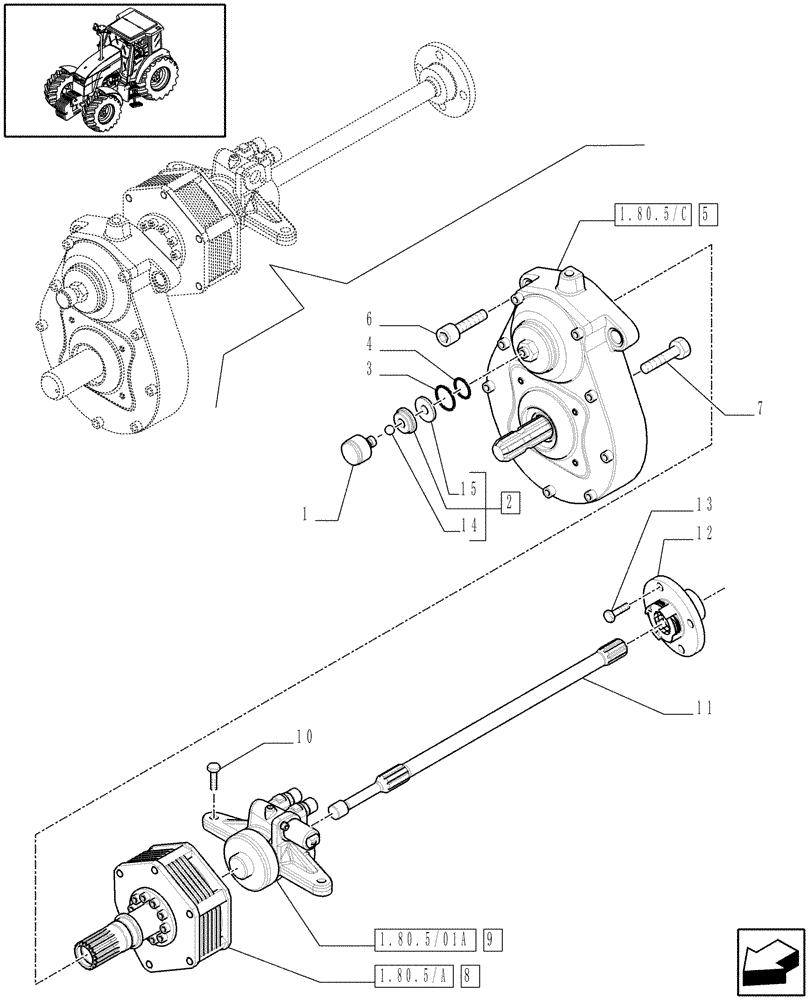

Запчасти Case IH MAXXUM 110 (1.80.5/03[01]) - INTEGRATED FRONT HPL WITH PTO - PTO, CLUTCH AND CYLINDER - D6519 (VAR.333648-334648-335648-330648-331648-332648) (07) - HYDRAULIC SYSTEM

1

47126759

BREATHER,M12 x 1.25

1шт.

2

47128748

PLUG

1шт.

3

11069276

SNAP RING,M48, Ext

1шт.

4

11059576

SNAP RING,M36, Int

1шт.

5

47127612

FRONT PTO ASSY

ASSY

1шт.

6

14429534

HEX SOC SCREW,M20 x 60mm, Cl 10.9

2шт.

7

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

1шт.

8

87315409

PTO CLUTCH

ASSY

1шт.

9

47057804

CYLINDER

ASSY

1шт.

10

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

11

87351594

DRIVE SHAFT,644mm L

1шт.

12

47127689

HUB

1шт.

13

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

MAX100, MAX110, MAX120, MAX130

1шт.

13

15215724

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

MAX115, MAX125, MAX140

1шт.

14

20063500

BALL,12.7mm OD

M12.7

1шт.

15

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

1шт.
