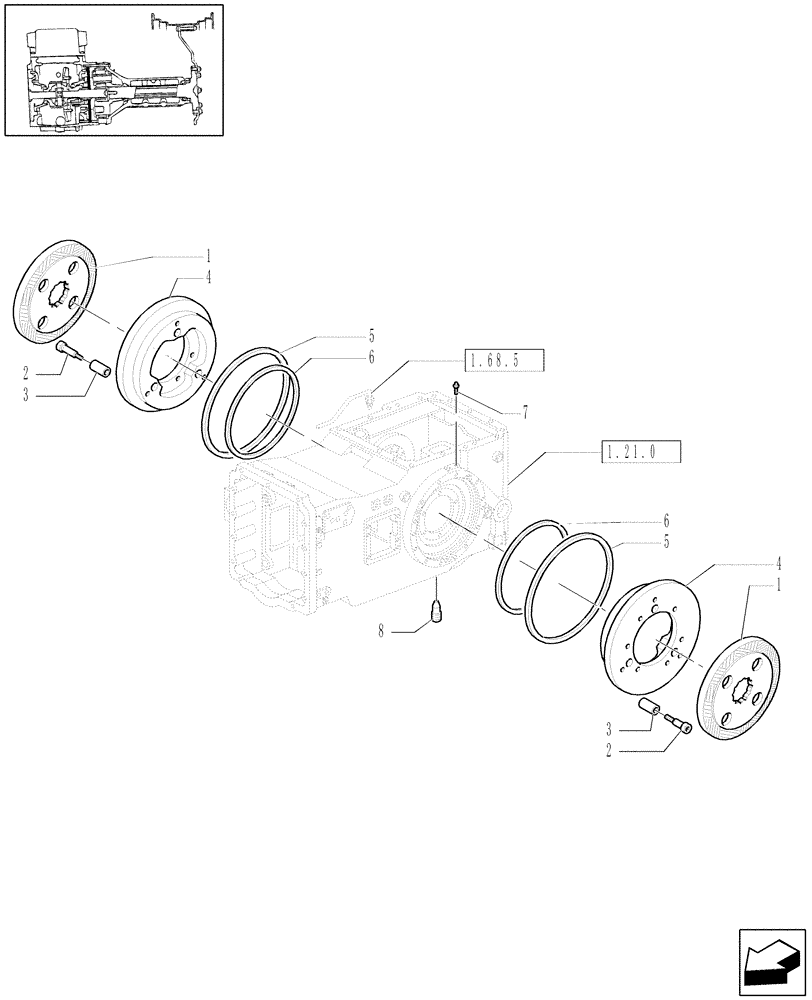

Запчасти Case IH MAXXUM 110 (1.65.3[01]) - REAR AXLE - BRAKES (05) - REAR AXLE

1

5191495

BRAKE DISC

2шт.

1

5191497

BRAKE DISC

2шт.

with 16x16 (30KM/H) Trans. (VAR.332245) and with 16x16 Trans. with Advanced Harness (VAR.331248-331289)

1шт.

2

47132770

SCREW,M10 x 1.25 x 48mm, Cl 10.9

6шт.

3

5192390

BUSHING,17mm ID x 24mm OD x 28.98mm L

6шт.

4

5191494

PISTON

2шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

2шт.

6

5191498

SEAL,Quad, 3.4mm Thk x 268mm ID, 80 Duro

2шт.

7

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

2шт.

8

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.
