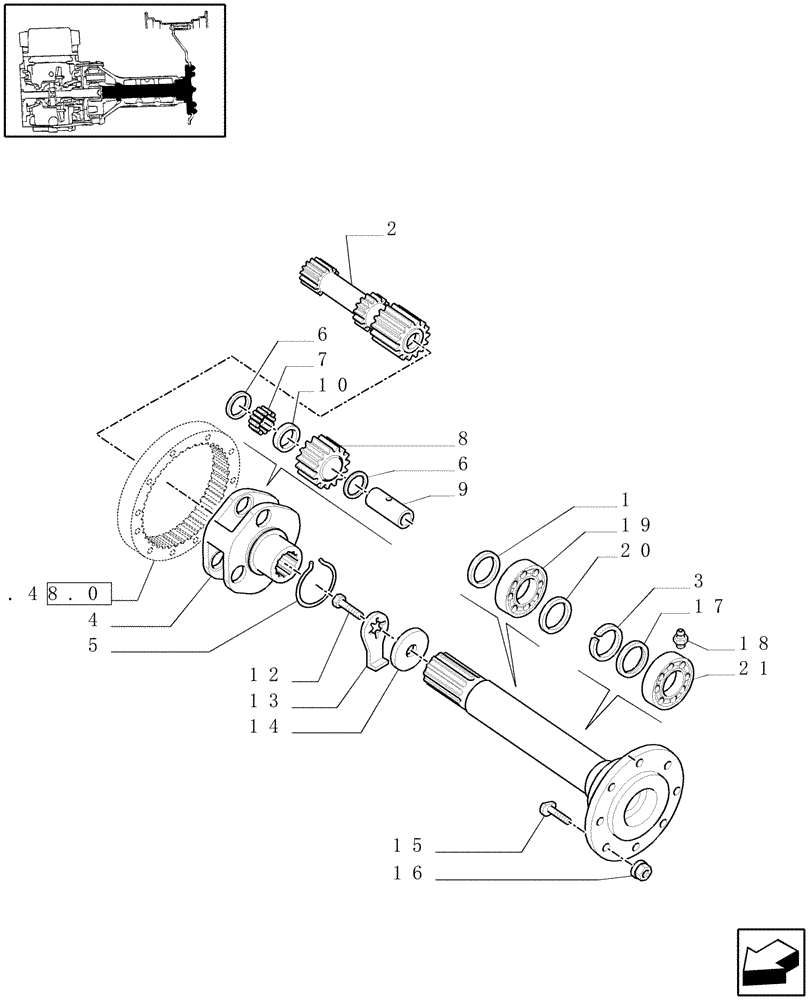

Запчасти Case IH MAXXUM 110 (1.48.1[01]) - STD REAR FINAL DRIVES - GEARS AND AXLE-SHAFT (05) - REAR AXLE

1

4996966

SHIM,4.5mm Thk

1шт.

1

4996967

SHIM,4.6mm Thk

1шт.

1

4996968

SHIM,4.7mm Thk

1шт.

1

4996969

SHIM,4.8mm Thk

1шт.

1

4996970

SHIM,4.9mm Thk

1шт.

1

4996971

SHIM,5.0mm Thk

1шт.

1

4996972

SHIM,5.1mm Thk

1шт.

1

4996973

SHIM,5.2mm Thk

1шт.

1

4996974

SHIM,5.3mm Thk

1шт.

1

4996975

SHIM,5.4mm Thk

1шт.

1

4996976

SHIM,5.5mm Thk

1шт.

1

4996977

SHIM,5.6mm Thk

1шт.

1

4996978

SHIM,5.7mm Thk

1шт.

1

4996979

SHIM,5.8mm Thk

1шт.

2

5195752

DRIVE SHAFT

2шт.

3

5123054

SPACER,127mm ID x 131mm OD x 6.5mm L

2шт.

4

5170104

PLANET CARRIER

2шт.

5

5157726

CIRCLIP

D=112

2шт.

6

5157720

THRUST WASHER,40mm ID x 70mm OD x 1mm Thk

12шт.

7

5157719

NEEDLE BEARING,40.15mm ID x 54.15mm OD x 26mm W

40.15x54.15x26

6шт.

8

5157671

PINION

Z29

6шт.

9

5170095

PIN,40.15mm OD x 108mm L

6шт.

10

5157718

SPACER,42.5mm ID x 54.05mm OD x 4mm L

42.5 x 54.05 x 4

6шт.

11

47124175

DRIVE SHAFT

2шт.

12

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

13

5157668

PLATE

2шт.

14

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

15

44011089

WHEEL BOLT

8шт.

16

87651026

NUT,M18, 1.5mm Pitch, Captive Wshr

M18 x 1.5

16шт.

17

5149310

SEAL,100mm ID x 130mm OD x 16mm Thk

100 x 130 x 16

2шт.

18

14324014

PLUG

10x1

2шт.

19

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65x120x23

2шт.

20

5124206

SEAL,70mm ID x 100mm OD x 10mm Thk

70x100x10

2шт.

21

20645490

BALL BEARING,75 mm ID x 130 mm OD x 25 mm

75x130x25

2шт.
