Запчасти Case IH MAXXUM 110 (1.42.0[03A]) - POWER STEERING DELIVERY AND RETURN PIPES FOR 12X12 TRANSMISSION - D6533 (04) - FRONT AXLE & STEERING

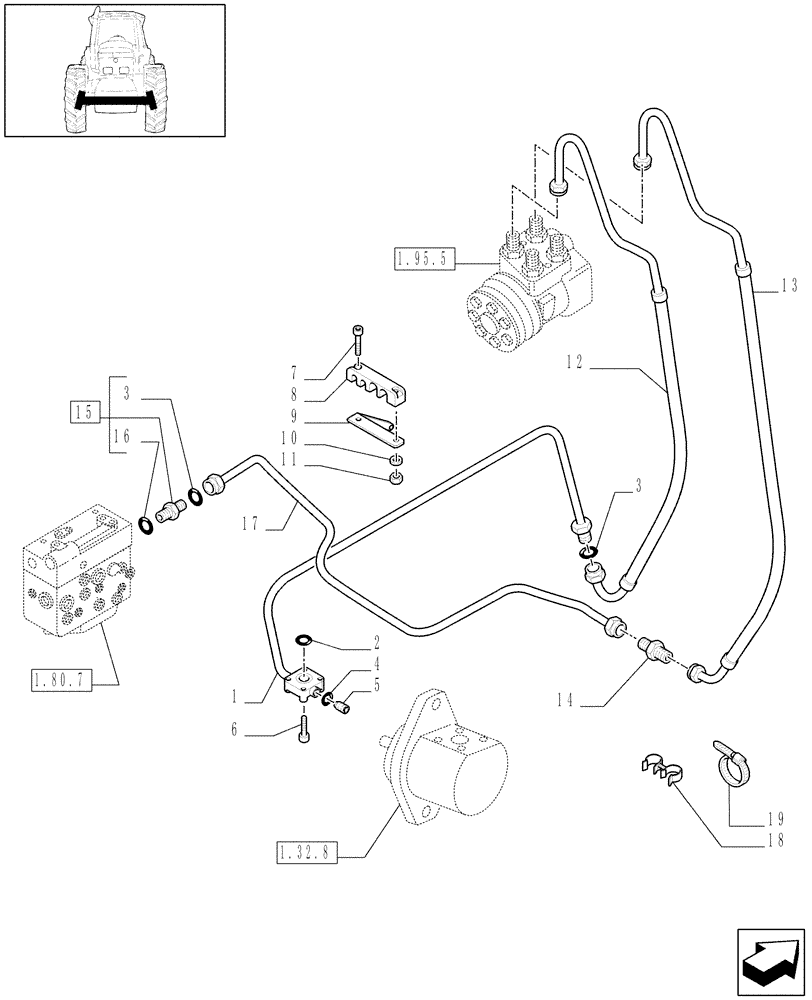

Схема запчастей Case IH MAXXUM 110 - (1.42.0[03A]) - POWER STEERING DELIVERY AND RETURN PIPES FOR 12X12 TRANSMISSION - D6533 (04) - FRONT AXLE & STEERING
3
13
11
16
8
4
3
17
2
18
15
1.95.5
1.32.8
12
14
1
9
1.80.7
19
10
5
7
6

Артикул

Название

Примечание

Количество

1

84235454

HYD TUBE

Incl.2, 3

1шт.

2

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

5

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

6

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

7

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

47123528

CLAMP

1шт.

9

47123529

BRACKET

1шт.

10

14499407

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

11

16100821

NUT,M8, Cl 10

2шт.

12

82036340

HYD TUBE

Feed, Serial Range: -C6554

1шт.

12

84209306

TUBE

Feed, Start Serial: D6554

1шт.

13

82036341

HYD TUBE

Return

1шт.

14

82030315

HYD CONNECTOR

1"-14, 13/16"-16

1шт.

15

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1"-14, M22x1,5

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

87367842

RIGID TUBE,16 mm DIA x 570, 386 mm L

1"-14

1шт.

18

82035888

CLIP,16mm

1шт.

19

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

Выбрано товаров: 20
