Запчасти Case IH MAXXUM 110 (1.40. 0/06[01]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. LOCK - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING

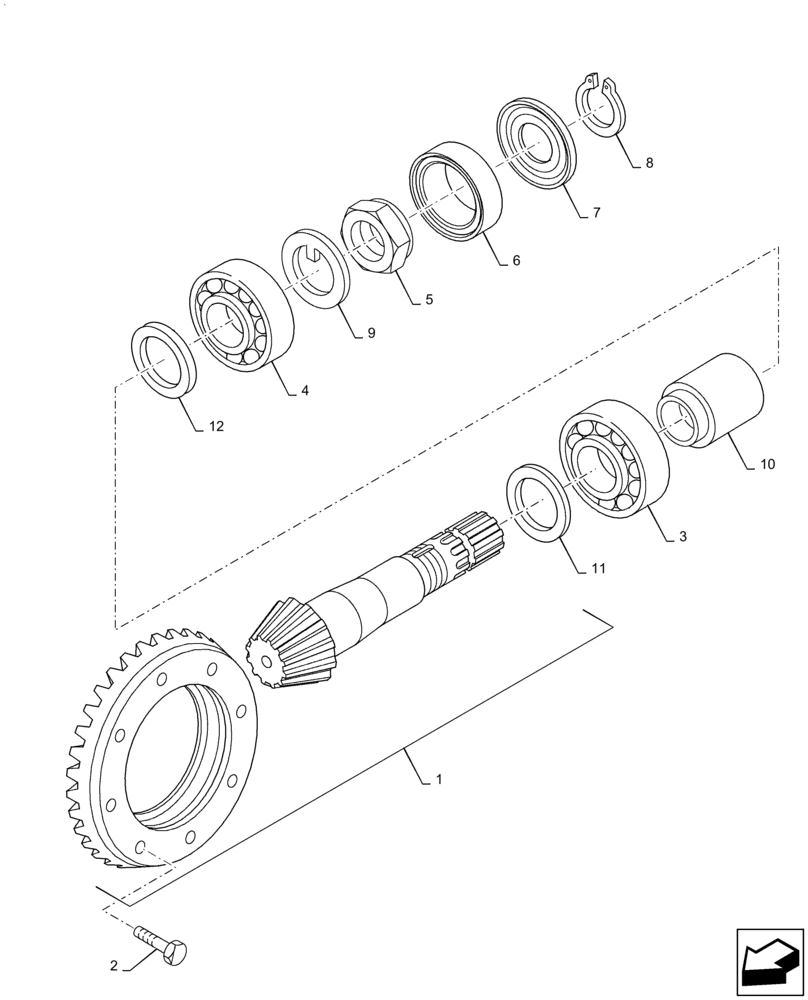

Схема запчастей Case IH MAXXUM 110 - (1.40. 0/06[01]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. LOCK - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING
4
9
6
5
2
1
10
12
8
7
11
3

Артикул

Название

Примечание

Количество

1

87519336

BEVEL GEAR

Ratio 10/34, Serial Range: -C7034

1шт.

1

84424849

BEVEL GEAR

Ratio 10/34, Serial Range: D7034-C7085

1шт.

1

84527568

GEAR SET,Ring and Pinion, Ratio 10/34

Ratio 10/34, Start Serial: D7085

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

5

5143242

RING NUT,M35 x 1.5

, Serial Range: -C7034

1шт.

5

84289068

CROWN NUT,M35 x 1.5

, Start Serial: D7034

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.

9

84285936

SPECIAL WASHER

, Start Serial: D7034

1шт.

10

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

, Start Serial: D7085

1шт.

11

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

11

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

11

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

11

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

11

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

11

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

11

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

11

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

11

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.

11

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

11

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

11

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

11

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.

12

7888010

SHIM,35.1mm ID x 43mm OD x 0.5mm Thk

1шт.

12

4997456

SHIM,35.1mm ID x 43mm OD x 2.5mm Thk

1шт.

12

5129151

SHIM,35.1mm ID x 43mm OD x 2.55mm Thk

1шт.

12

4997457

SHIM,35.1mm ID x 43mm OD x 2.6mm Thk

1шт.

12

5129152

SHIM,35.1mm ID x 43mm OD x 2.65mm Thk

1шт.

12

4997458

SHIM,35.1mm ID x 43mm OD x 2.7mm Thk

1шт.

12

4997459

SHIM,35.1mm ID x 43mm OD x 2.8mm Thk

1шт.

12

5129154

SHIM,35.1mm ID x 43mm OD x 2.85mm Thk

1шт.

12

4997460

SHIM,35.1mm ID x 43mm OD x 2.9mm Thk

1шт.

12

5129155

SHIM,35.1mm ID x 43mm OD x 2.95mm Thk

1шт.

12

4997463

SHIM,35.00mm ID x 43.00mm OD x 3.20mm T

1шт.

12

5101236

SHIM,35.00mm ID x 43.00mm OD x 3.50mm Thk

1шт.

Выбрано товаров: 38
