Запчасти Case IH MAXXUM 110 (1.33.3/02) - WET DIFFERENTIAL AND 4WD ENGAGEMENT CLUTCHES - SPLINED HUB AND DISKS (VAR.330333-331333) (04) - FRONT AXLE & STEERING

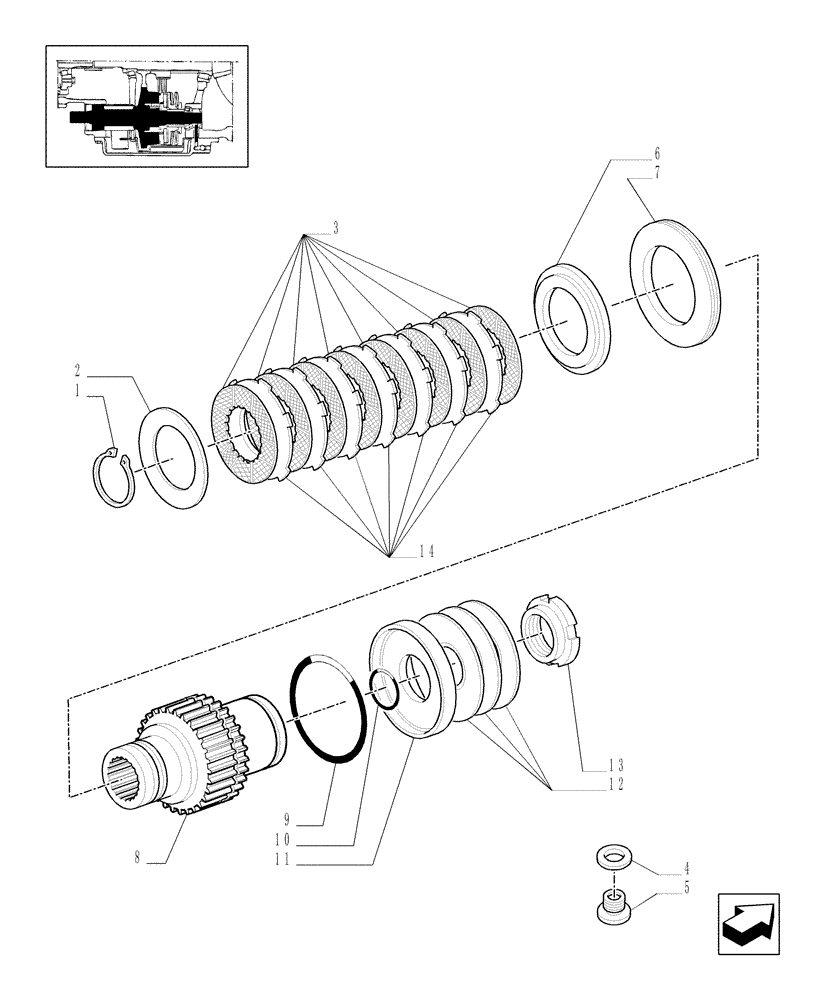

Схема запчастей Case IH MAXXUM 110 - (1.33.3/02) - WET DIFFERENTIAL AND 4WD ENGAGEMENT CLUTCHES - SPLINED HUB AND DISKS (VAR.330333-331333) (04) - FRONT AXLE & STEERING
8
5
13
11
2
10
4
9
12
1
14
3
7
6

Артикул

Название

Примечание

Количество

1

5139462

SNAP RING,3mm Thk

D=98

1шт.

2

47126552

CLUTCH PLATE

1шт.

3

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

8шт.

4

10243760

SEAL,M26.4 x 34 x 2, Copper

1шт.

5

87303094

PLUG

1шт.

6

47126551

CLUTCH PLATE,97.3-97.5mm ID, 161mm OD

1шт.

7

5153329

DISC,150mm OD x 65mm ID x 9.5mm Thk

2.62x145.7

1шт.

8

5193227

HUB

2.62x53.67

1шт.

9

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

10

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

11

5193859

PISTON

1шт.

12

9845126

BELLEVILLE WASHER,71.5mm ID x 157mm OD x 4mm Thk

1шт.

13

5193860

NUT,Rd, M58,1.5mm Pitch

M58x1.5

1шт.

14

84177629

DRIVE PLATE,99mm ID x 152mm OD x 1.5mm Thk

7шт.

Выбрано товаров: 14
