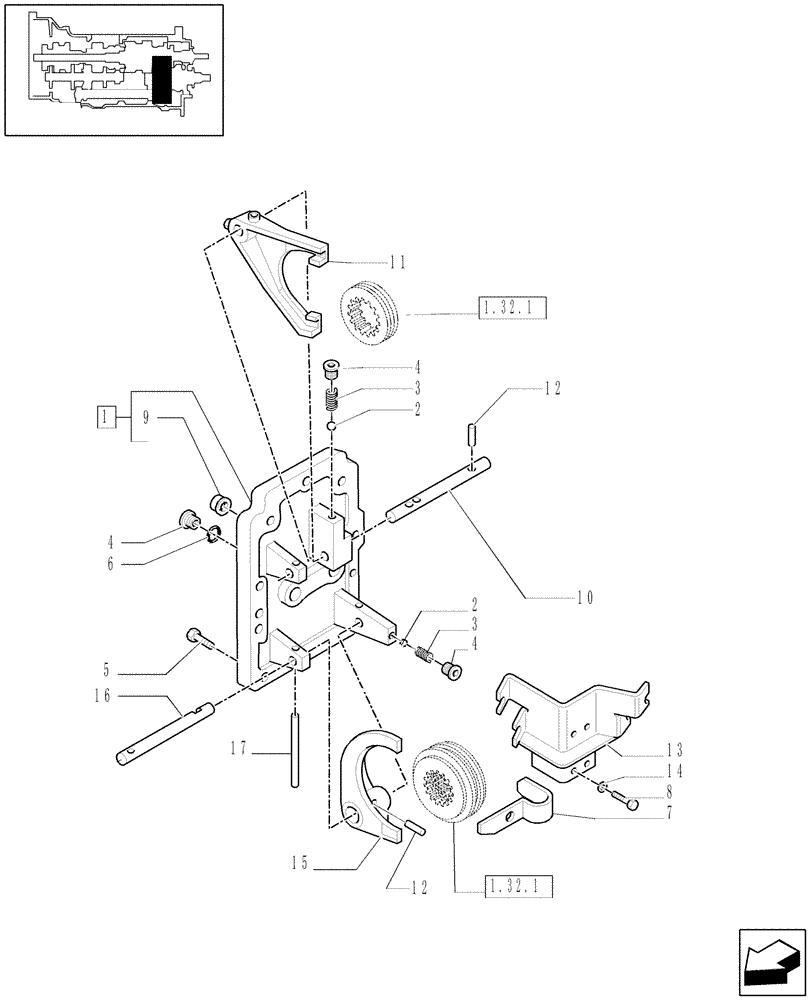

Запчасти Case IH MAXXUM 110 (1.32.2[01]) - TRANSMISSION 12X12 - RANGE GEARSHIFT MECHANISM - COVER, RODS AND FORKS (03) - TRANSMISSION

1

47127793

COVER

1шт.

2

20063480

BALL,Metal, 9.525mm, Gr 100

D=3/8

2шт.

3

83407013

SPRING

2шт.

4

83911570

HEX SOCKET PLUG,9/16"-18

3шт.

5

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

6

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

47132608

BRACKET

1шт.

8

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

5167877

BUSHING,24mm ID x 27mm OD x 20mm L

24 x 7 x 20

1шт.

10

5198777

ROD

1шт.

11

47127797

SHIFTER FORK

Low Range

1шт.

12

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

2шт.

13

47127937

BRACKET

1шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

15

47127798

FORK

High/Mid Range

1шт.

16

47137664

ROD

1шт.

17

81864543

PIN,9.47mm OD x 118.25mm L

1шт.
