Запчасти Case IH MAXXUM 110 (1.29.7/04[01]) - TRANSMISSION 24X24 HI-LO - OIL COOLER PIPES (VAR.330282) (03) - TRANSMISSION

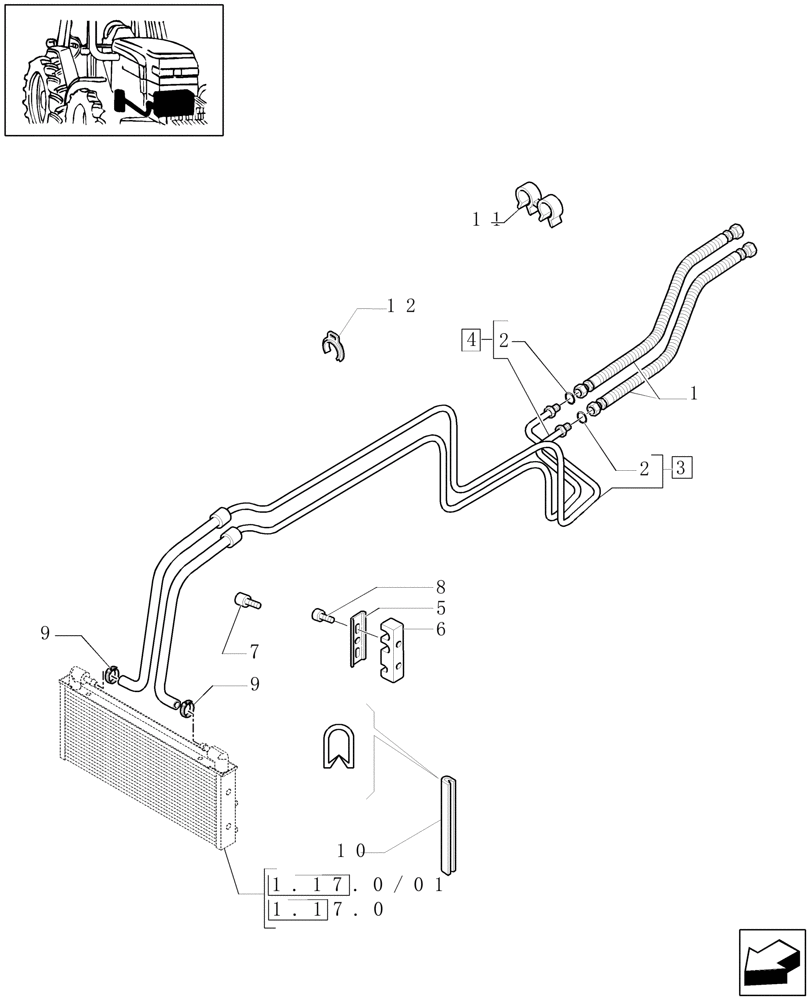

Схема запчастей Case IH MAXXUM 110 - (1.29.7/04[01]) - TRANSMISSION 24X24 HI-LO - OIL COOLER PIPES (VAR.330282) (03) - TRANSMISSION
7
6
9
9
10
1
2
1.17.0
1.17.0/01
8
5
12
2
3
4
11

Артикул

Название

Примечание

Количество

1

82034720

HYDRAULIC HOSE,12.7mm ID x 710mm L, SAE 100R1

2шт.

2

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

87516823

PIPE ASSY.

For 4 cyl. models only

1шт.

3

87516867

PIPE ASSY.

For 6 cyl. models only

1шт.

4

87516822

PIPE ASSY.

For 4 cyl. models only

1шт.

4

87516825

PIPE ASSY.

For 6 cyl. models only

1шт.

5

82004584

CLAMP

1шт.

Qty.=1 for 4 cyl. Models; Qty.=2 for 6 cyl. Models

1шт.

6

82030578

CLAMP

1шт.

Qty.=1 for 4 cyl. Models; Qty.=2 for 6 cyl. Models

1шт.

7

81821263

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

Qty.=2 for 4 cyl. Models; Qty.=4 for 6 cyl. Models

1шт.

8

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

Qty.=2 for 4 cyl. Models; Qty.=4 for 6 cyl. Models

1шт.

9

82039343

HOSE CLAMP,16mm - 27mm

, Serial Range: -Z7BE52963

4шт.

9

82039341

CLAMP,12mm - 22mm

, Start Serial: ZBE52964

4шт.

10

83964601

MOLDING,164mm L

3шт.

11

82039687

HOSE CLIP,2 Hoses

2шт.

12

87363477

CLIP

, Start Serial: D5790

2шт.

Выбрано товаров: 19
