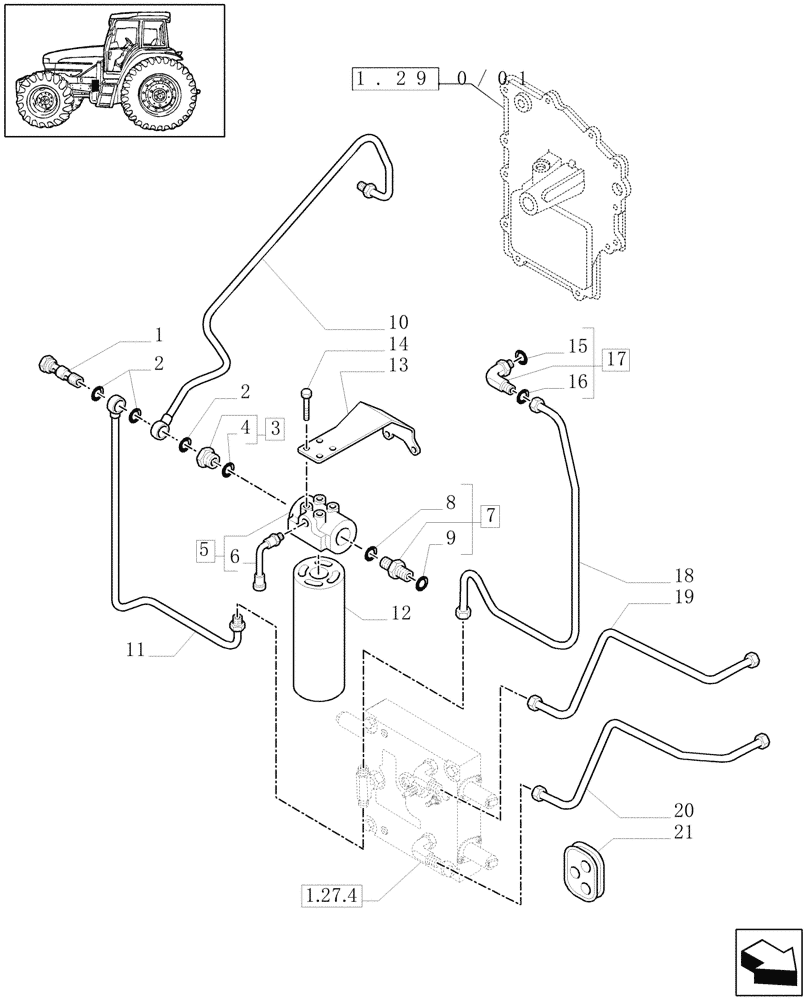

Запчасти Case IH MAXXUM 110 (1.29.6/02[01]) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR EDC AND 24X24 - PIPES AND FILTER - C6741 (VAR.330824) (03) - TRANSMISSION

1

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

3шт.

3

47125546

HYD CONNECTOR

Incl 4

1шт.

4

5185506

O-RING,23.47mm ID x 2.95mm Width

1шт.

5

5185368

FILTER HEAD

Incl 6

1шт.

6

82015028

SWITCH ASSY

Oil Pressure

1шт.

7

5185521

HYD CONNECTOR

1"-14 ,1"-1/16-12, Incl 8, 9

1шт.

8

5185506

O-RING,23.47mm ID x 2.95mm Width

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

47134008

HYD TUBE

1шт.

11

47124748

HYD TUBE

1шт.

12

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

Charge Pump

1шт.

13

47124353

BRACKET

1шт.

14

81821827

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

17

5185054

ELBOW,90 Degrees, M18 x 1.5 ORB 13/16-16 ORFS

13/16"-16, M18 x 1.5, Incl 15, 16

1шт.

18

47130570

HYD TUBE

13/16"-16

1шт.

19

47130564

HYD TUBE

13/16"-16

1шт.

20

47130565

HYD TUBE

13/16"-16

1шт.

21

82008251

GROMMET

1шт.
