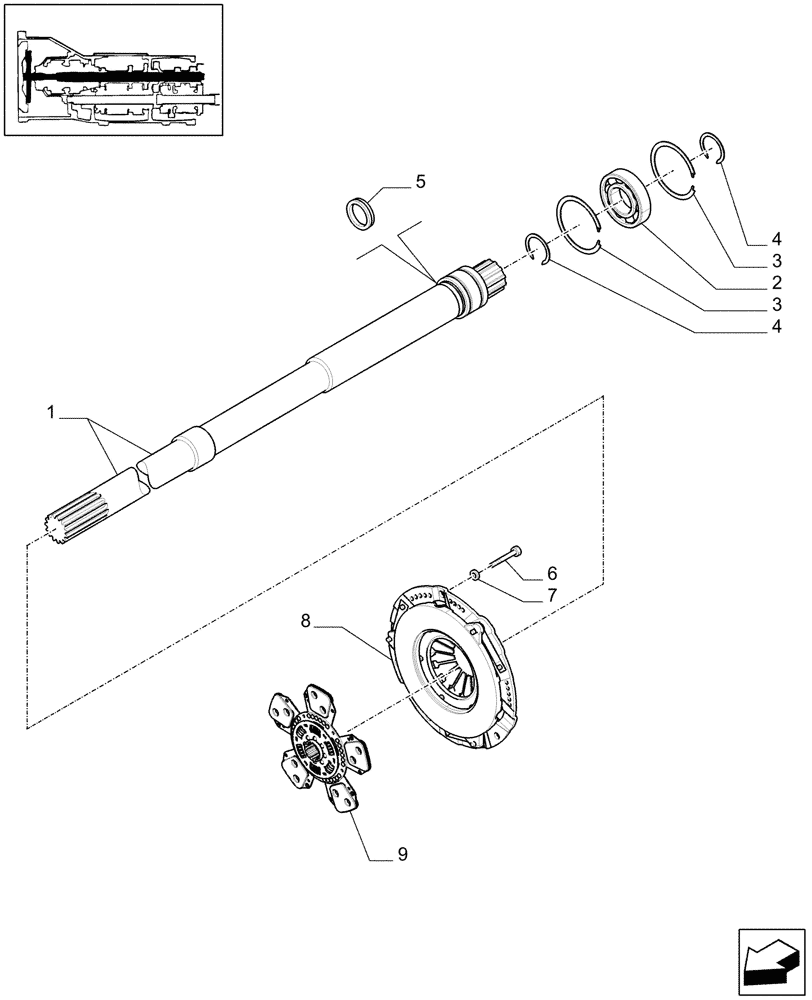

Запчасти Case IH MAXXUM 110 (1.25.3) - TRANSMISSION 12X12 - CLUTCH AND INPUT SHAFT (STD + VAR.330293) (03) - TRANSMISSION

1

5195013

SHAFT

1шт.

2

81875518

BEARING ASSY,35mm ID x 72mm OD x 17mm W

1шт.

3

81801973

SNAP RING,3.03" OD

2шт.

4

81805006

CIRCLIP

2шт.

5

81864773

SEAL,M26.92 ID x 4.83/7.62 Thk

1шт.

6

16043629

SCREW,M8 x 25mm

9шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

9шт.

8

5196060

CLUTCH

13"

1шт.

8

5196060R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate

1шт.

8

5196060C

CORE-CLUTCH PLATE

Return Number

1шт.

9

5196058

CLUTCH PLATE,327mm OD

1шт.

9

5196058R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate

1шт.

9

5196058C

CORE-CLUTCH PLATE

Return Number

1шт.
