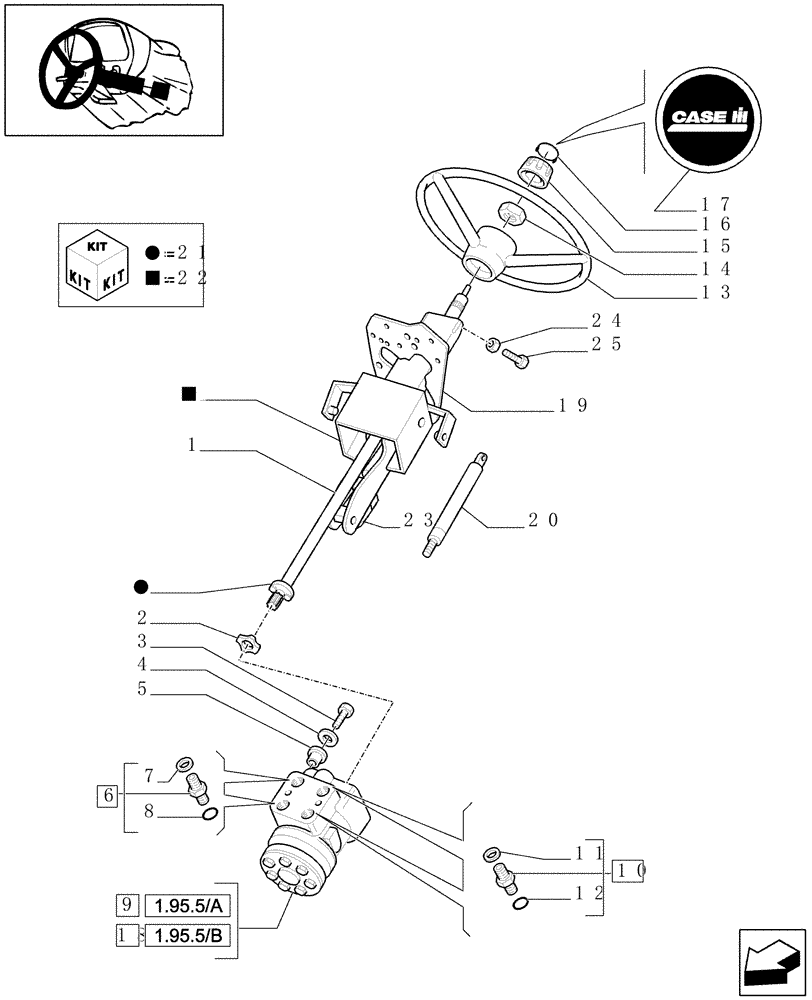

Запчасти Case IH MAXXUM 110 (1.95.5/01[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN - C6099 (10) - OPERATORS PLATFORM/CAB

1

87568239

STEERING COLUMN,Tilting, Telescoping

Standard, Without Self Cancelling Indicator, Incl. 19-25

1шт.

1

87594568

STEERING COLUMN

Tilt Only, Incl.19

1шт.

for MAX125 Limited L/Cab

1шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

5

82009429

ISOLATOR

4шт.

6

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

M22 x 1.5 - 1/14

2шт.

7

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

19.6 x 24.3 x 1.5

2шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

47137781

HYDRAULIC STEERING

2WD

1шт.

9

47137771

HYDRAULIC STEERING

2WD

1шт.

W/Heavy Duty Front Axle

1шт.

10

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

11

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

15.7 x 20.9 x 1.5

2шт.

12

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

2шт.

13

9821708

STEERING WHEEL

1шт.

14

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

15

87302160

KNOB

1шт.

16

87302798

CAP,54mm OD, Black

1шт.

17

86401707

EMBLEM

1шт.

18

82001471

HYDRAULIC STEERING

4WD

1шт.

18

82001471R

REMAN-HYD VALVE

Reman for New PN 82001471

1шт.

18

82001471C

CORE-VALVE HYD

Return Number

1шт.

19

87521595

SUPPORT

1шт.

20

82036016

GAS STRUT

Gas Strut and Lever Assy

1шт.

21

87521601

FLEXIBLE COUPLING

Flexible Coupling Kit

1шт.

22

87521597

KIT

Service Kit Assy

1шт.

23

82035121

HANDLE

1шт.

24

10794011

NUT,M4, Cl 8

3шт.

25

87578957

SET SCREW,Hex Skt, M4 x 8mm, Cl 8.8

3шт.
