Запчасти Case IH MAXXUM 110 (1.95.4/01) - TRANSMISSION 16X16 (40 KM/H) SPS - ACCELERATOR HAND CONTROL LINKAGE (10) - OPERATORS PLATFORM/CAB

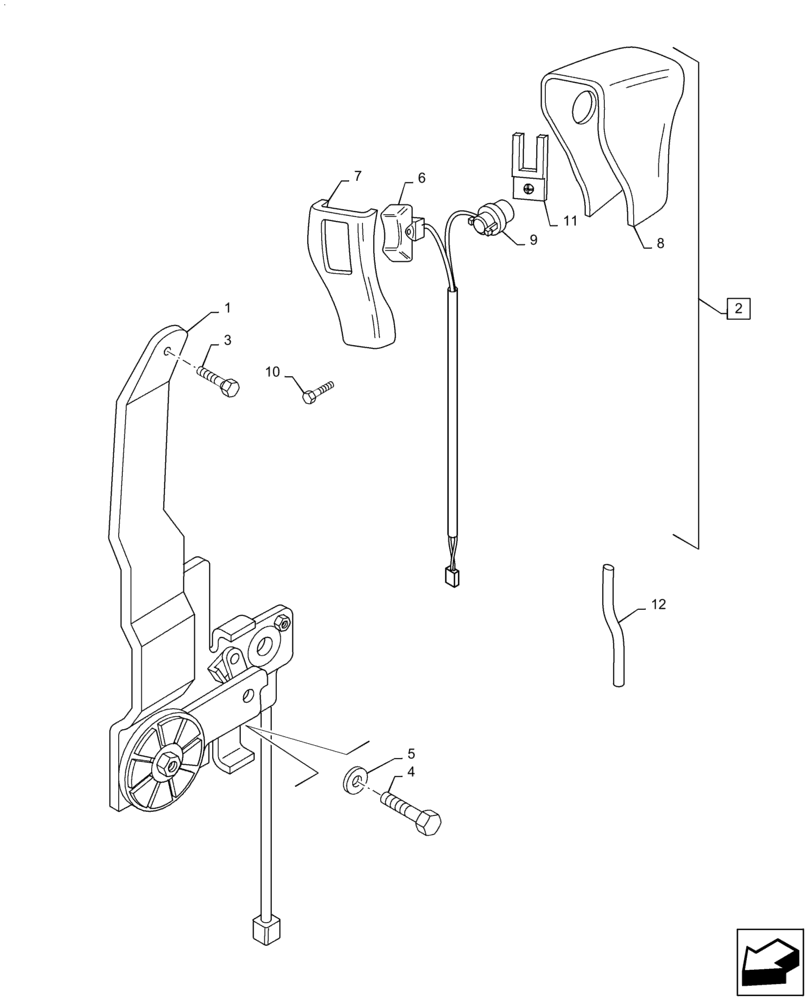

Схема запчастей Case IH MAXXUM 110 - (1.95.4/01) - TRANSMISSION 16X16 (40 KM/H) SPS - ACCELERATOR HAND CONTROL LINKAGE (10) - OPERATORS PLATFORM/CAB
5
1
12
11
2
6
4
10
8
9
3
7

Артикул

Название

Примечание

Количество

1

82029022

THROTTLE CONTROL

Includes Potentiometer Which is NSS

1шт.

2

82033983

CONTROL

Throttle

1шт.

3

14303321

SCREW,Hex, M4 x 20mm, Cl 8.8, Full Thd

1шт.

4

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

83937016

LOCK WASHER,Serr, M8

2шт.

6

82033984

SWITCH ASSY

Up/Down Shift

1шт.

7

44995017

PANEL

1шт.

8

44995021

BOX

1шт.

9

82033985

SWITCH

Range Change

1шт.

10

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

4шт.

11

87571717

RETAINER

, Start Serial: D5529

1шт.

12

82001932

SLEEVE

1шт.

Выбрано товаров: 12
