Запчасти Case IH MAXXUM 110 (1.94.3/01[04B]) - AIR CONDITIONING SYSTEM PIPES - D6663 - C7161 (10) - OPERATORS PLATFORM/CAB

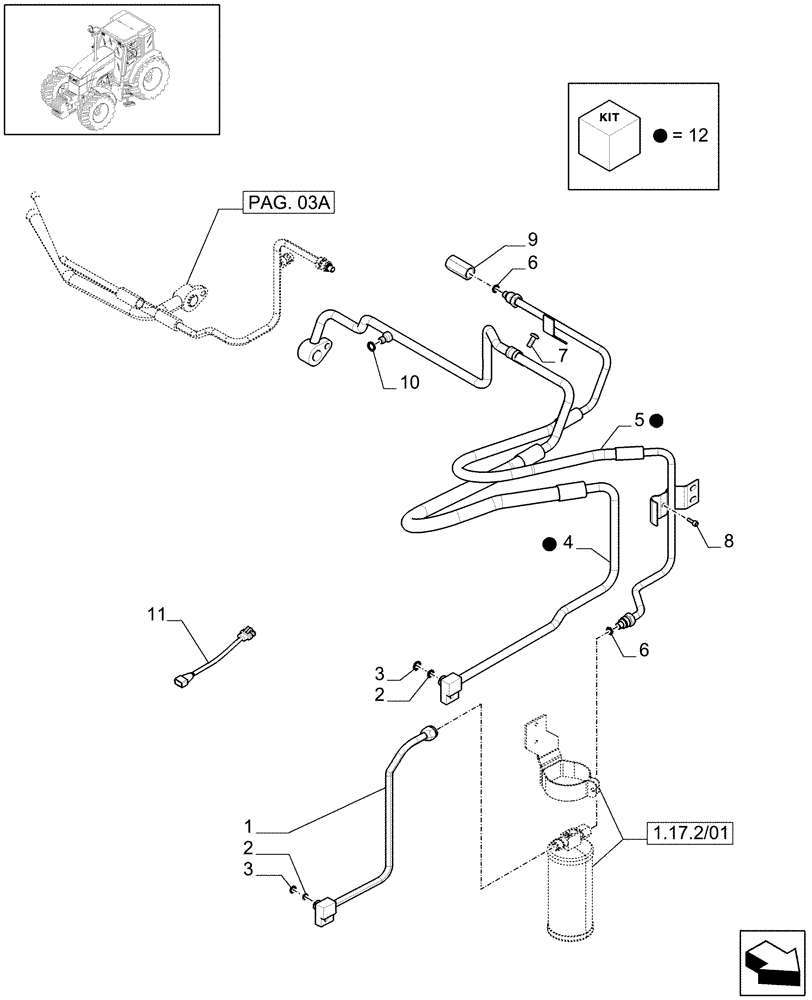

Схема запчастей Case IH MAXXUM 110 - (1.94.3/01[04B]) - AIR CONDITIONING SYSTEM PIPES - D6663 - C7161 (10) - OPERATORS PLATFORM/CAB
1.17.2/01
8
5
pag. 03a
12
3
10
9
2
1
4
6
2
6
11
3
12
7
12

Артикул

Название

Примечание

Количество

1

84238518

PIPE

Incl. 2, 3

1шт.

2

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

3

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

84245114

PIPE

Incl. 2, 3, 10

1шт.

5

84247793

PIPE

Incl. 6

1шт.

6

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

2шт.

7

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

8

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

9

87738978

ADAPTER

1шт.

10

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

11

84221137

WIRE HARNESS

1шт.

12

84475923

SERVICE KIT

ASSY, Air Conditioning Hoses, Incl. 4, 5

1шт.

6 CYL Models only

1шт.

12

84475924

SERVICE KIT

ASSY, Air Conditioning Hoses, Incl. 4, 5

1шт.

4 CYL Models only

1шт.

Выбрано товаров: 15
