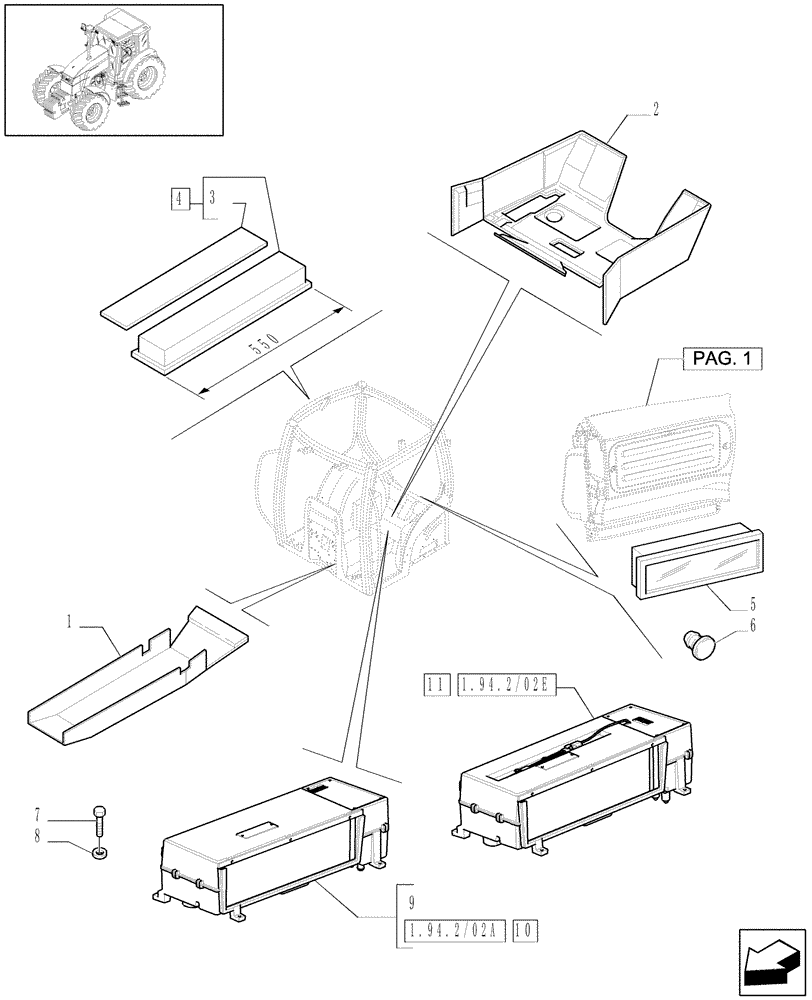

Запчасти Case IH MAXXUM 110 (1.94.2/02[03]) - AIR CONDITIONING WITH ATC - AIR CONDITIONER AND RELATED PARTS - C6481 (VAR.330643) (10) - OPERATORS PLATFORM/CAB

1

82027034

INSULATOR

LH

1шт.

2

82027032

INSULATOR

1шт.

3

82024373

FOAM

2шт.

4

82034665

CAB FILTER

2шт.

5

87302687

CAB FILTER

Recirulation

1шт.

6

82027031

PLUG,M10

1шт.

7

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

9

87325435

CONDITIONING UNIT

W/Air Conditioned, Serial Range: -C5488

1шт.

10

87541627

MODULE

ASSY, Serial Range: D5488-C5941

1шт.

11

87728085

MODULE

ASSY, Start Serial: D5941

1шт.
