Запчасти Case IH MAXXUM 110 (1.93.3/ F[01]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, OPS AND BELTS - BREAKDOWN - L/ CAB (STD + VAR.330709) - D5518 - C7342 (10) - OPERATORS PLATFORM/CAB

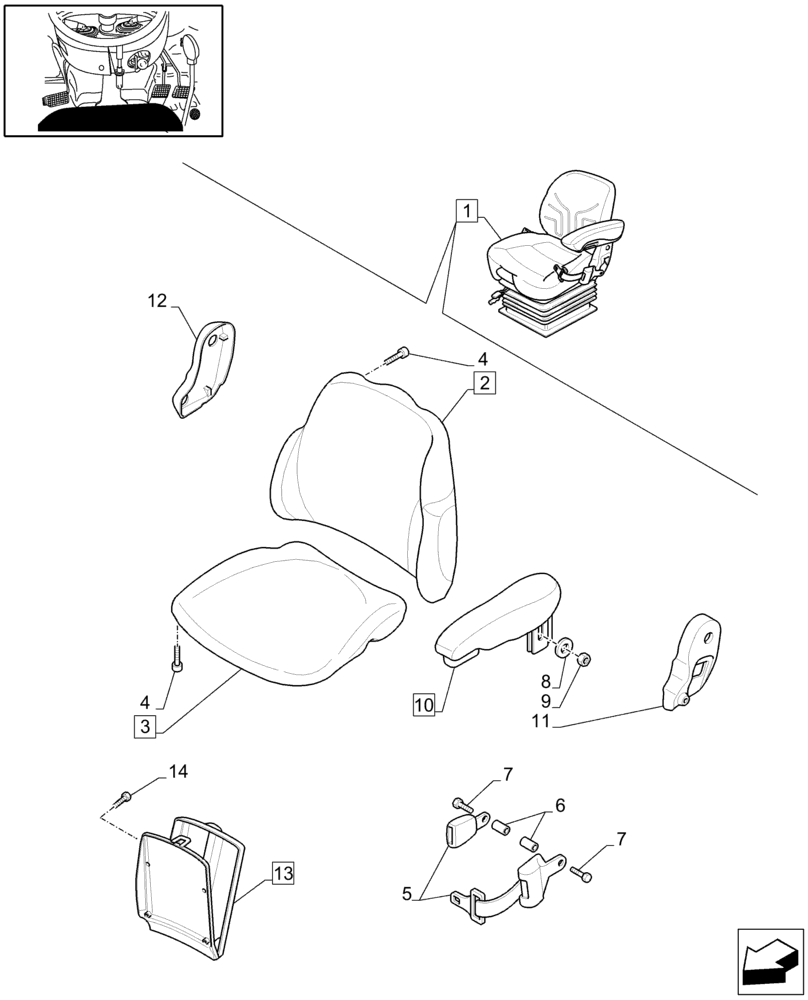

Схема запчастей Case IH MAXXUM 110 - (1.93.3/ F[01]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, OPS AND BELTS - BREAKDOWN - L/ CAB (STD + VAR.330709) - D5518 - C7342 (10) - OPERATORS PLATFORM/CAB
2
7
14
1
13
4
4
5
6
12
9
7
8
11
3
10

Артикул

Название

Примечание

Количество

1

87579877

DRIVER SEAT

1шт.

2

47124957

SEAT BACK

ASSY, Incl 4 (Qty 4)

1шт.

3

82034982

SEAT CUSHION

ASSY, Incl 4 (Qty 3)

1шт.

4

82034997

SCREW,M5 x 25mm

7шт.

5

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

6

84171407

BUSHING

2шт.

7

82034885

SCREW,7/16" - 20 x 35"

2шт.

8

9960692

WASHER

1шт.

9

82034880

NUT,M8

1шт.

10

82034988

ARMREST

ASSY, Incl 8 (Qty 1), 9 (Qty 1)

1шт.

11

87331931

COVER

SX

1шт.

12

82023115

COVER

DX

1шт.

13

71491415

UTILITY HOLDER

ASSY, Incl 14

1шт.

14

82034863

SCREW,M4 x 8mm

3шт.

Выбрано товаров: 14
