Запчасти Case IH MAXXUM 110 (1.93.3[01]) - SEAT - L/ CAB (10) - OPERATORS PLATFORM/CAB

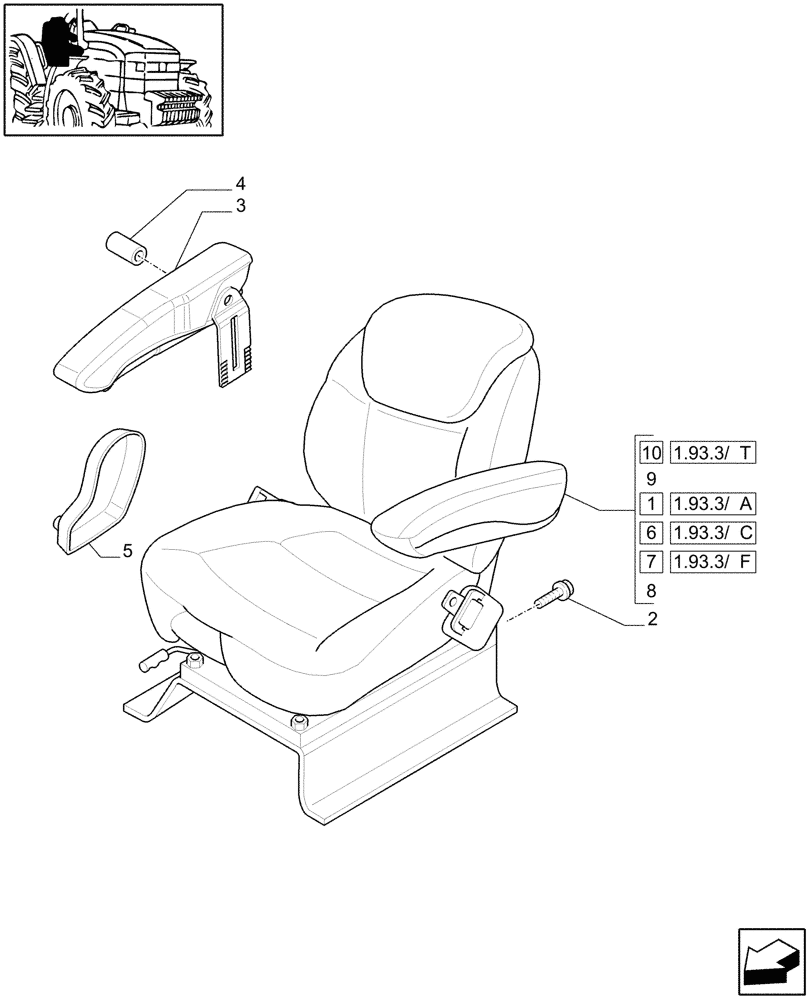

Схема запчастей Case IH MAXXUM 110 - (1.93.3[01]) - SEAT - L/ CAB (10) - OPERATORS PLATFORM/CAB
1.93.3/ a
3
8
5
9
1
7
1.93.3/ c
6
1.93.3/ f
1.93.3/ t
2
10
4

Артикул

Название

Примечание

Количество

1

82023117

DRIVER SEAT

, Serial Range: -C5910

1шт.

Mech.SEAT L/BELT and L/Operator presence Switch

1шт.

2

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

82025110

ARMREST

1шт.

3

82025111

ARMREST

1шт.

RH Short Seat Arm for MDC, with Mech. Joystick for Front Loader, VAR.330020

1шт.

4

82032523

COVER

1шт.

5

82023115

COVER

1шт.

6

82023114

DRIVER SEAT

, Serial Range: -C5518

1шт.

DELUXE Mech. Seat W/Belt and Operator Presence Switch, VAR.330708

1шт.

7

87579877

DRIVER SEAT

, Serial Range: D5518-C7342

1шт.

DELUXE Mech. Seat W/Belt and Operator Presence Switch, VAR.330708

1шт.

8

87682104

DRIVER SEAT

, Start Serial: D5910

1шт.

DELUXE Mech. Seat W/Belt and Operator Presence Switch, VAR.330708

1шт.

9

87682159

DRIVER SEAT

, Start Serial: D5910

1шт.

Mech.SEAT L/BELT and L/Operator presence Switch

1шт.

10

47488865

DRIVER SEAT

, Start Serial: D7342

1шт.

DELUXE Mech. Seat W/Belt and Operator Presence Switch, VAR.330708

1шт.

Выбрано товаров: 18
