(1.48.0/01) - HEAVY DUTY REAR FINAL DRIVES - HOUSING (VAR.330336)

Запчасти Case IH MAXXUM 110 (1.48.0/01) - HEAVY DUTY REAR FINAL DRIVES - HOUSING (VAR.330336) (05) - REAR AXLE

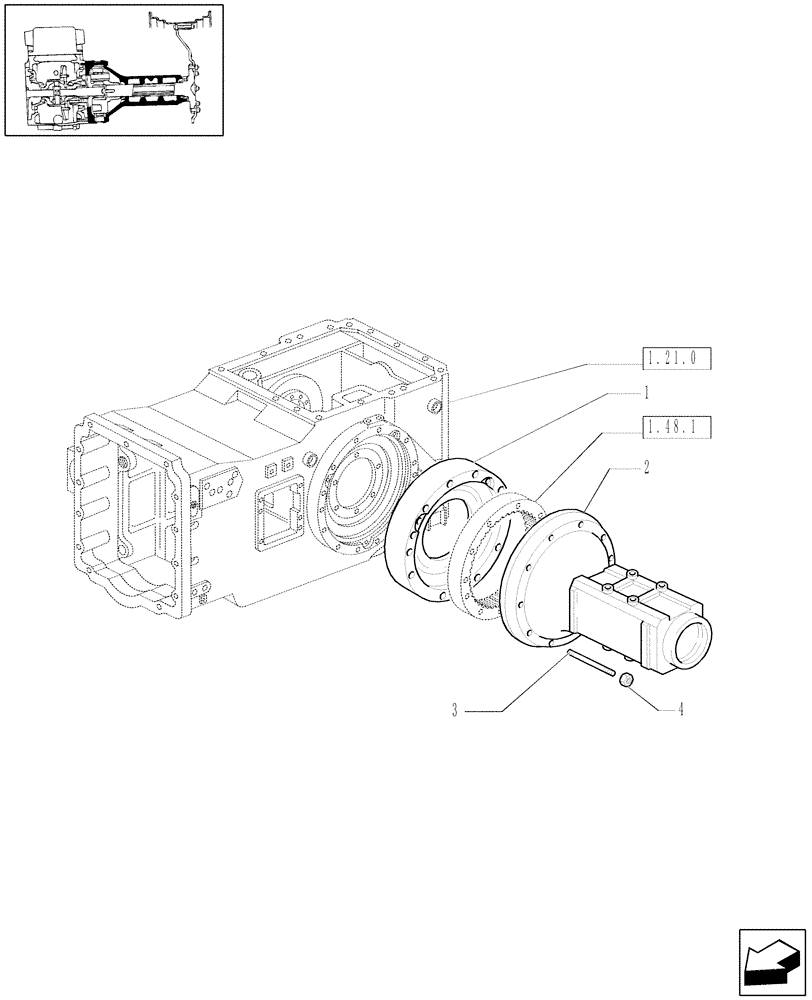

Схема запчастей Case IH MAXXUM 110 - (1.48.0/01) - HEAVY DUTY REAR FINAL DRIVES - HOUSING (VAR.330336) (05) - REAR AXLE
2
1
3
1.21.0
1.48.1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125657

SPACER

2шт.

2

47124320

AXLE HOUSING

2шт.

3

13557730

STUD,M14 x 1.5 x 20mm x 145mm, Cl 10.9

M14 x 145

12шт.

3

13557930

STUD,M14 x 1.5 x 20mm x 160mm, Cl 10.9

M14 x 160

4шт.

3

13558430

STUD,M14 x 1.5 x 20.00mm x 170.00mm, Cl 10.9, PLN

8шт.

4

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

24шт.
